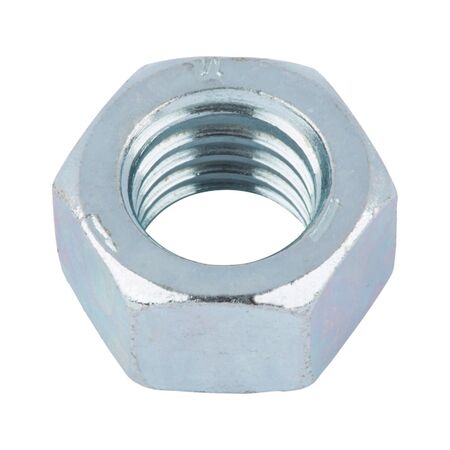

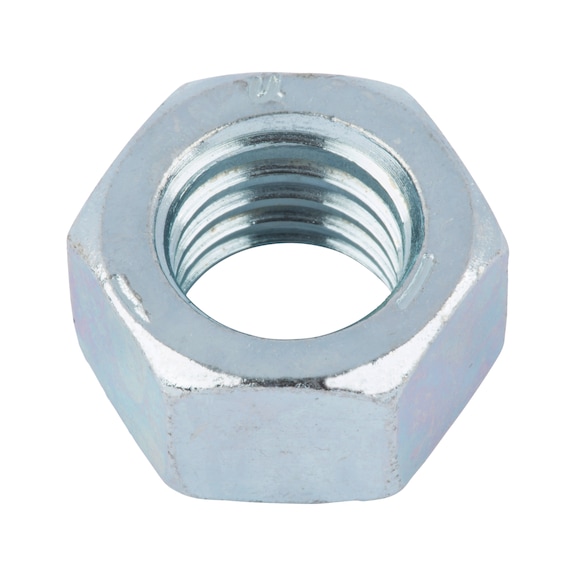

Hexagon Nut ASME B18.2.2 | Blue Passivated Zinc Plated | GR8 Steel | Fine UNF Thread | @PCS by Wurth
Hexagon Nut ASME B18.2.2 with fine UNF thread and blue passivated zinc plating offers superior corrosion resistance and high mechanical strength. Ideal for mechanical assemblies and industrial machinery, this GR8 steel nut ensures reliable fastening in inch-based systems, making it a must-have for automotive and general purpose applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | Blue Passivated Zinc Plated | GR8 Steel | Fine UNF Thread | @PCS by Wurth
Brand: Wurth
SKU: 7739074
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, Zinc Plated Hex Nut, GR8 Steel Nut
Technical Specifications
- Nominal diameter: 1 inch (25.4 mm)
- Height: 0.887 inch (22.5 mm)
- Width across flats: 1 1/2 inch (38 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Blue passivated zinc plated
- Thread type: UNF (Unified Fine Thread)
- Thread starts per inch: 14
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 22.5mm x 38mm x 38mm
- Weight: 0.05 kg
Key Features
- Hexagon nut with fine UNF thread
- Blue passivated zinc plated for corrosion resistance
- Made from GR8 steel for high mechanical strength
- Complies with ASME B18.2.2 dimensional standards
- Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
- Mechanical assemblies requiring fine thread hexagon nuts
- Industrial machinery and automotive fastening
- General purpose fastening in inch-based systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Nut inch size with fine UNF thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
