Hexagon Nut ASME B18.2.2 | Blue Passivated Zinc Plated | GR8 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Hexagon Nut ASME B18.2.2 with blue passivated zinc plating and GR8 steel construction—ideal for mechanical fastening in automotive and industrial applications. Designed for high strength and corrosion resistance, this UNF fine thread nut ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | Blue Passivated Zinc Plated | GR8 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7739063
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, Zinc Plated Hex Nut, GR8 Steel Nut

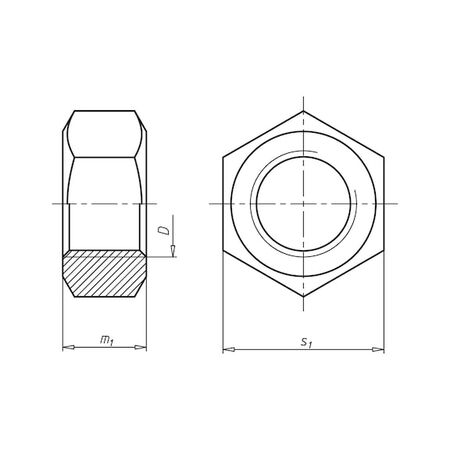

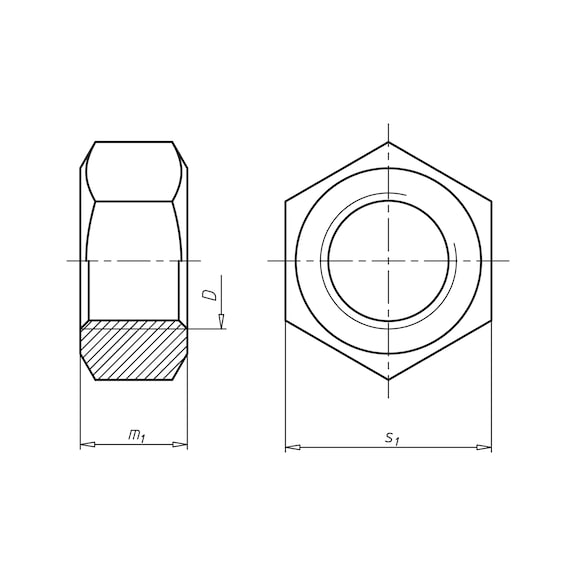

Technical Specifications
- Nominal diameter: 5/8 inch (15.875 mm)
- Height: 0.559 inch (14.2 mm)
- Width across flats: 15/16 inch (23.81 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Blue passivated zinc plated
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 18
- Mechanical properties regulated by SAE J995
- Thread tolerance: ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 14.2mm x 23.81mm x 23.81mm
- Weight: 0.05 kg
Key Features
- Blue passivated zinc plated finish for corrosion resistance
- Made from GR8 steel for high mechanical strength
- UNF (fine thread) with 18 threads per inch
- Complies with ASME B18.2.2 hexagon nut standards
- Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
- Mechanical fastening in automotive, machinery, and industrial equipment
- Use in fine thread applications requiring high strength and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Hexagon Nut in inch size with UNF fine thread is available for immediate purchase, ideal for mechanical and industrial fastening applications.
