Hexagon Nut ASME B18.2.2 | GR8 Steel | Blue Passivated Zinc Plated | UNC Thread | @Pack of 25 | by Wurth
Hexagon Nut ASME B18.2.2 made from GR8 steel and featuring a blue passivated zinc plated finish is perfect for secure fastening in mechanical assemblies. With UNC threads and high corrosion resistance, this nut is ideal for industrial machinery, automotive, and construction applications, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | Blue Passivated Zinc Plated | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7739050
Alternatively Known As: Hex Nut UNC 1/2 inch, Blue Zinc Plated Hex Nut, GR8 Steel Hex Nut, ASME B18.2.2 Hex Nut

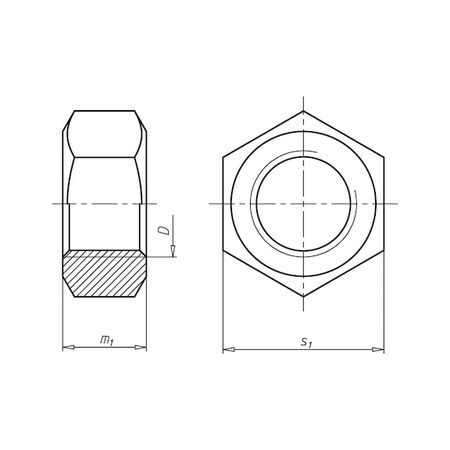

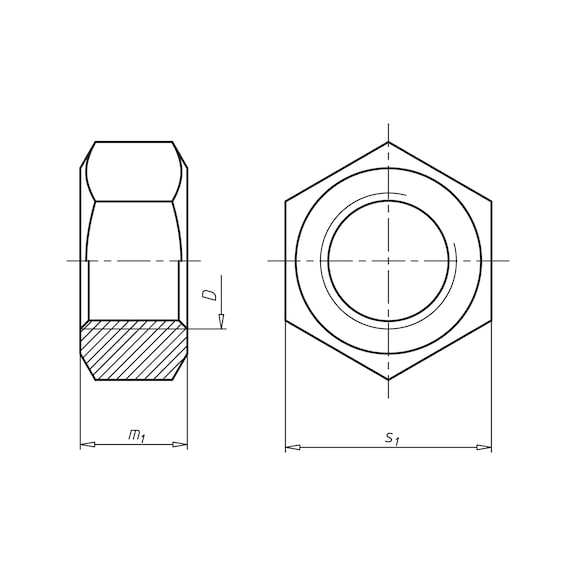

Technical Specifications
- Nominal diameter: 1/2 inch (12.7 mm)
- Height: 0.448 inch (11.38 mm)
- Width across flats: 3/4 inch (19.05 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Blue passivated zinc plated
- Thread type: UNC
- Threads per inch: 13
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 11.38mm x 19.05mm x 19.05mm
- Weight: 0.05 kg
Key Features
- Made from GR8 steel for high strength
- Blue passivated zinc plated surface for corrosion resistance
- UNC thread type with 13 threads per inch
- Complies with ASME B18.2.2 hexagon nut standards
- Standard thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fitment.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and construction applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Durable steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
