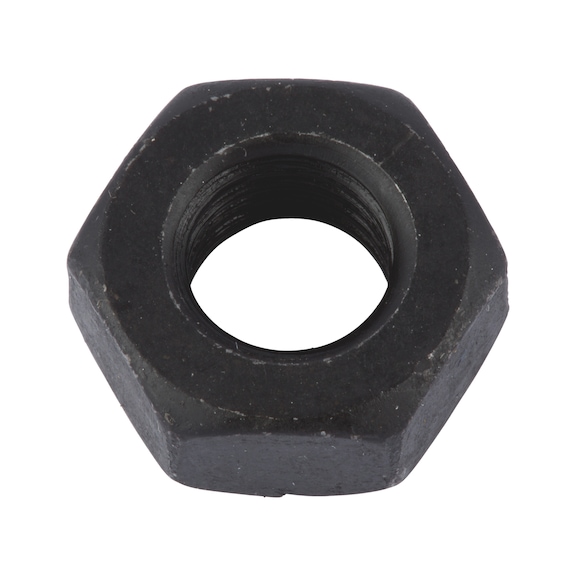

Hexagon Nut ASME B18.2.2 | GR8 Steel | Fine UNF Thread | Plain Finish | @Pack of 50 | by Wurth
Hexagon Nut ASME B18.2.2 made from GR8 steel with fine UNF thread is perfect for mechanical assemblies and industrial machinery. Designed for high strength and compliance with ASME standards, this nut ensures reliable fastening in various applications. Ideal for automotive and general-purpose fastening, it features a plain finish for easy integration into your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | Fine UNF Thread | Plain Finish | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 7739315
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, GR8 Steel Nut, ASME B18.2.2 Nut
Technical Specifications
- Nominal diameter: 1/4 inch (6.35 mm)
- Height: 0.2260 inch (5.74 mm)
- Width across flats: 7/16 inch (11.11 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNF (Unified Fine Thread)
- Thread starts per inch: 28
- Mechanical properties regulated by SAE J995
- Thread tolerance: ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 5.74mm x 11.11mm x 11.11mm
- Weight: 0.02 kg
Key Features
- Hexagon nut with fine UNF thread
- Made from GR8 grade steel for high mechanical strength
- Complies with ASME B18.2.2 dimensional standards
- Thread tolerance according to ASME B1.1 = 2B for internal thread
- Plain surface finish
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
- Mechanical assemblies requiring fine thread hexagon nuts
- Industrial machinery and automotive fastening
- General purpose fastening in inch measurement systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Standardized sizing reduces waste in manufacturing and inventory
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Nut in inch size with fine UNF thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
