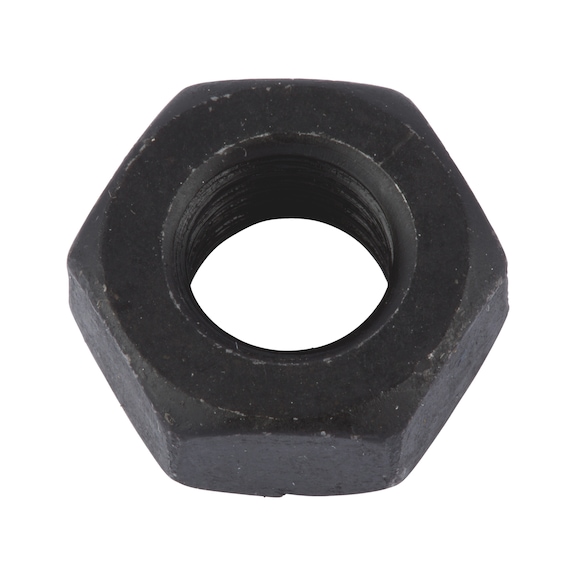

Hexagon Nut ASME B18.2.2 | GR8 Steel | Plain Finish | UNC Thread | @PCS by Wurth
Hexagon Nut ASME B18.2.2 made from GR8 steel with a plain finish and UNC thread is perfect for mechanical fastening in machinery and equipment. Designed for industrial assembly, this durable nut ensures high strength and reliability, making it ideal for maintenance and repair tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | Plain Finish | UNC Thread | @PCS by Wurth
Brand: Wurth
SKU: 7739316
Alternatively Known As: Hex Nut, Inch Hex Nut, UNC Hex Nut, GR8 Steel Nut, ASME B18.2.2 Nut
Technical Specifications
- Nominal diameter: 1 inch (25.4 mm)
- Height: 0.887 inch (22.5 mm)
- Width across flats: 1 1/2 inch (38 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 8
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 = 2B (for internal thread)
- Dimensions (H x L x W): 22.5mm x 38mm x 38mm
- Weight: 0.1 kg
Key Features
- Complies with ASME B18.2.2 standard for hexagon nuts
- Made from GR8 grade steel for high strength
- Plain surface finish
- UNC thread type with 8 threads per inch
- Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fitment.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring inch-sized hex nuts
- Maintenance and repair of equipment with UNC threads
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Recyclable steel material
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Hexagon Nut inch size is available for immediate purchase, ideal for industrial and mechanical fastening applications.
