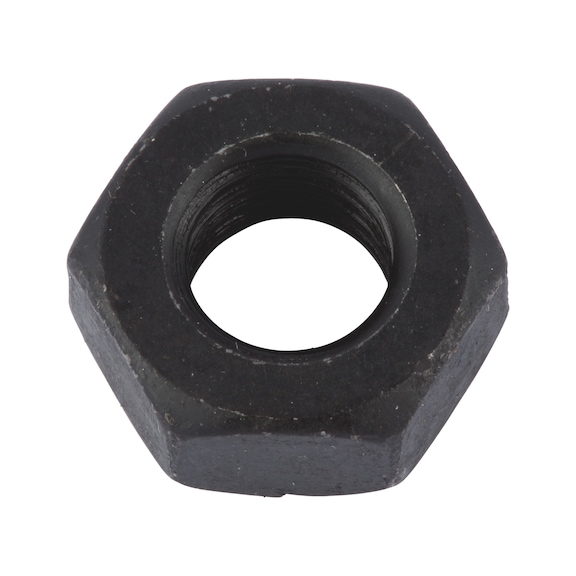

Hexagon Nut ASME B18.2.2 | GR8 Steel | UNC Thread | Plain Finish | by Wurth
Hexagon Nut ASME B18.2.2 made from GR8 steel with UNC thread is perfect for mechanical assemblies requiring secure fastening. This durable nut features a plain finish and complies with ASME standards, making it ideal for industrial machinery and automotive applications. Designed for high strength and reliability, it ensures optimal performance in various fastening tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | UNC Thread | Plain Finish | by Wurth
Brand: Wurth
SKU: 7739387
Alternatively Known As: Hex Nut, Hexagon Fastener, UNC Hex Nut, Steel Hex Nut, GR8 Nut
Technical Specifications
- Nominal diameter: 7/8 inch (22.225 mm)
- Height: 0.776 inch (19.7 mm)
- Width across flats: 1 5/16 inch (33.34 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 9
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 19.7mm x 33.34mm x 33.34mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 standard for hexagon nuts
- Made from GR8 grade steel for high strength
- UNC thread type with 9 threads per inch
- Plain surface finish suitable for various applications
- Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fitment.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and construction applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Recyclable steel material supports sustainability
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagon Nut inch size GR8 steel UNC thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
