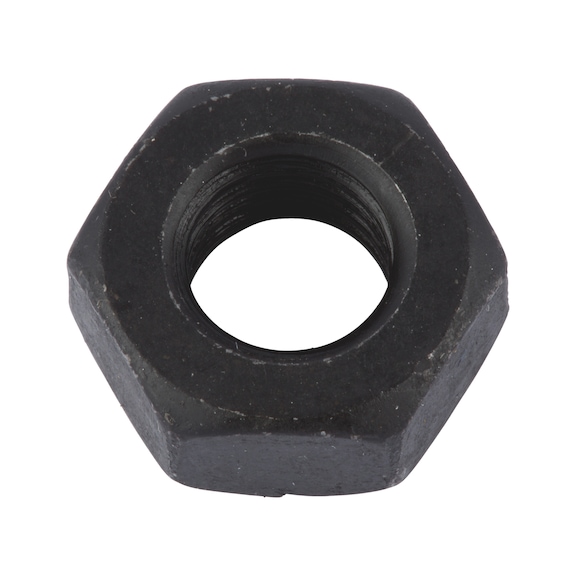

Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Hexagon Nut ASME B18.2.2 made from durable GR8 steel with UNF fine thread, perfect for mechanical assemblies and industrial applications. With 24 threads per inch, it ensures precise fastening and compliance with ASME standards. Ideal for automotive and general-purpose fastening, this pack of 25 nuts is designed for strength and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7739338
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, ASME B18.2.2 Nut, GR8 Steel Nut
Technical Specifications
- Nominal diameter: 3/8 inch (9.525 mm)
- Height: 0.337 inch (8.56 mm)
- Width across flats: 9/16 inch (14.29 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 24
- Thread tolerance: ASME B1.1 = 2B (internal thread)
- Mechanical properties regulated by SAE J995
- Dimensions (H x L x W): 8.56mm x 14.29mm x 14.29mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 hexagon nut standards
- Made from plain GR8 steel for strength and durability
- UNF (fine thread) with 24 threads per inch for precise fastening
- Standard thread tolerance according to ASME B1.1 = 2B for internal thread
- Mechanical properties regulated by SAE J995
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
- Mechanical assemblies requiring fine thread hexagon nuts
- Industrial machinery and automotive fastening
- General purpose fastening in inch-based systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Standardized manufacturing reduces waste and ensures compatibility
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Nut inch size ASME B18.2.2 plain GR8 steel UNF fine thread 25 PCS is available for immediate purchase, ideal for mechanical and industrial fastening applications.
