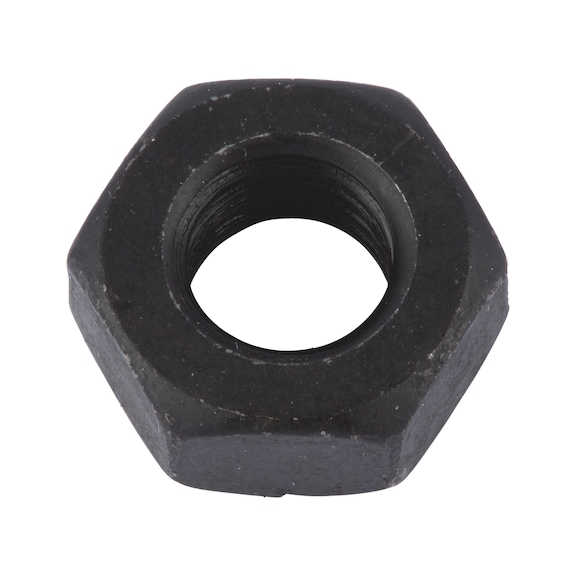

Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Hexagon Nut ASME B18.2.2 made from durable GR8 steel with UNF fine thread is perfect for mechanical assemblies and industrial machinery. Designed for high strength and reliability, this nut features 18 threads per inch and complies with ASME standards, ensuring optimal performance in inch-based fastening applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7739357
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, Inch Hex Nut, GR8 Steel Nut
Technical Specifications
- Nominal diameter: 9/16 inch (14.29 mm)
- Height: 0.496 inch (12.6 mm)
- Width across flats: 13/16 inch (20.64 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 18
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 12.6mm x 20.64mm x 20.64mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 hexagon nut standards
- Material: Plain GR8 steel for high strength
- UNF (Unified Fine Thread) with 18 threads per inch
- Standard thread tolerance according to ASME B1.1 = 2B for internal thread
- Nominal diameter: 9/16 inch
- Height: 0.496 inch
- Width across flats: 13/16 inch
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring fine thread hexagon nuts
- Industrial machinery and automotive fastening
- General purpose fastening in inch-based systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements, minimizing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Nut inch size with UNF fine thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
