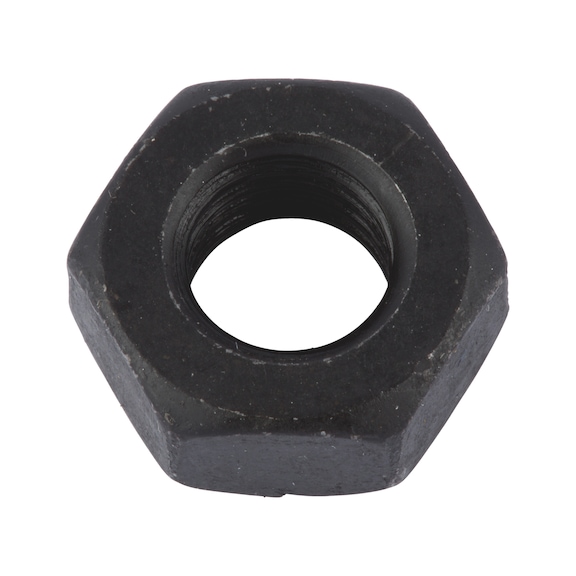

Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | Plain Finish | @Pack of 25 | by Wurth
Hexagon Nut ASME B18.2.2 made from GR8 steel with UNF fine thread is perfect for mechanical assemblies and industrial applications. Designed for high strength and durability, this nut features a plain finish and complies with ASME standards, ensuring reliable performance in various fastening tasks. Ideal for automotive and general-purpose use, it’s a must-have for professionals seeking quality and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | Plain Finish | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7739376
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, GR8 Steel Nut, ASME B18.2.2 Nut
Technical Specifications
- Nominal diameter: 3/4 inch (19.05 mm)
- Height: 0.665 inch (16.891 mm)
- Width across flats: 1 1/8 inch (28.575 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 16
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 16.891mm x 28.575mm x 28.575mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 hexagon nut standards
- Made from GR8 grade steel for high strength
- UNF (Unified Fine Thread) with 16 threads per inch
- Plain surface finish suitable for various applications
- Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fitment.
Applications
- Mechanical assemblies requiring fine thread hexagon nuts
- Industrial machinery and automotive fastening
- General purpose fastening in inch-based systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Standardized sizing reduces waste in manufacturing and inventory
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications.
