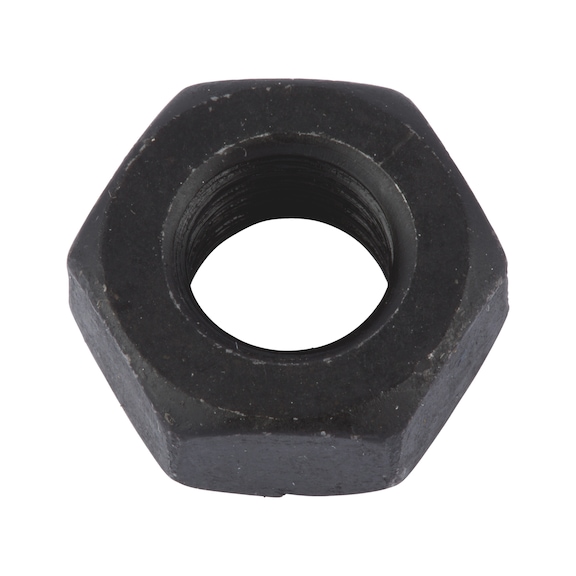

Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | Plain Finish | @Pack of 50 | by Wurth
Hexagon Nut ASME B18.2.2 made from GR8 steel with a plain finish and UNF fine thread is perfect for mechanical assemblies and industrial machinery. Designed for high strength and durability, this nut ensures reliable fastening in inch-based systems, making it ideal for automotive and general-purpose applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | Plain Finish | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 7739344
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, GR8 Steel Nut, ASME B18.2.2 Nut
Technical Specifications
- Nominal diameter: 7/16 inch (11.11 mm)
- Height: 0.385 inch (9.78 mm)
- Width across flats: 5/8 inch (15.88 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 20
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 9.78mm x 15.88mm x 15.88mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 hexagon nut standards
- Made from GR8 grade steel for high strength
- UNF (Unified Fine Thread) with 20 threads per inch
- Plain surface finish
- Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and fitment.
Applications
- Mechanical assemblies requiring fine thread hexagon nuts
- Industrial machinery and automotive fastening
- General purpose fastening in inch-based systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Recyclable steel material supports sustainability
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Nut in inch size with fine UNF thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
