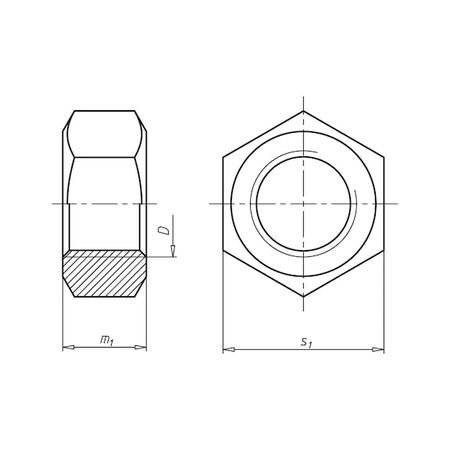

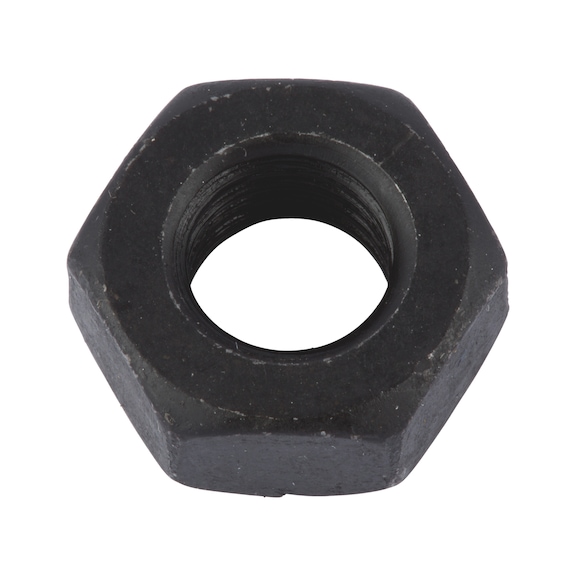

Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | Plain Finish | @PCS by Wurth
Hexagon Nut ASME B18.2.2 made from GR8 steel offers high mechanical strength and precision with its UNF fine thread design. Ideal for automotive and industrial applications, this nut ensures reliable fastening in demanding environments. Its plain finish makes it suitable for various uses, while compliance with ASME standards guarantees quality and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | GR8 Steel | UNF Fine Thread | Plain Finish | @PCS by Wurth
Brand: Wurth
SKU: 7739388
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, GR8 Steel Nut, ASME B18.2.2 Nut
Technical Specifications

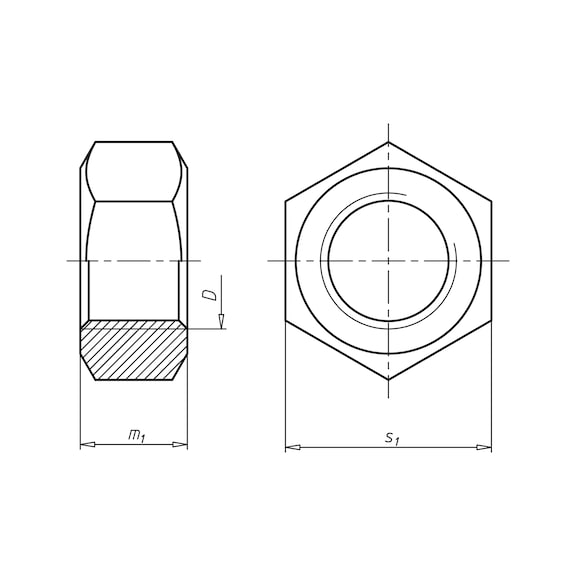

- Nominal diameter: 7/8 inch (22.225 mm)
- Height: 0.776 inch (19.7 mm)
- Width across flats: 1 5/16 inch (33.34 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 14
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 standard: 2B (internal thread)
- Dimensions (H x L x W): 19.7mm x 33.34mm x 33.34mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 hexagon nut standards
- Made from GR8 grade steel for high mechanical strength
- UNF (Unified Fine Thread) with 14 threads per inch for precise fastening
- Plain surface finish suitable for various industrial applications
- Thread tolerance according to ASME B1.1 standard (2B for internal thread)
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical fastening in automotive, machinery, and industrial equipment
- Use in fine thread applications requiring high strength and precision
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Nut in inch size with UNF fine thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
