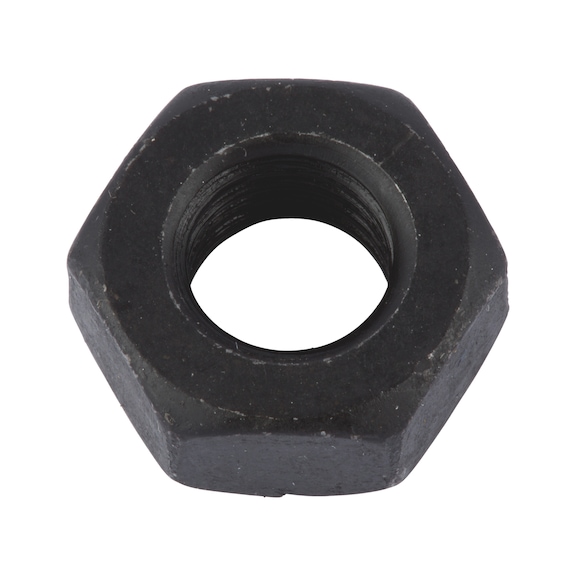

Hexagon Nut ASME B18.2.2 | Plain GR8 Steel | UNC Thread | @Pack of 25 | by Wurth
Hexagon Nut ASME B18.2.2 made from durable plain GR8 steel is perfect for mechanical fastening in machinery and automotive assemblies. With UNC thread compatibility and a property class of GR8, this nut ensures high strength and reliability. Ideal for industrial applications, it supports sustainable manufacturing with recyclable materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | Plain GR8 Steel | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7739356
Alternatively Known As: Hex Nut UNC, Hexagon Fastener Nut, GR8 Steel Nut, ASME B18.2.2 Nut

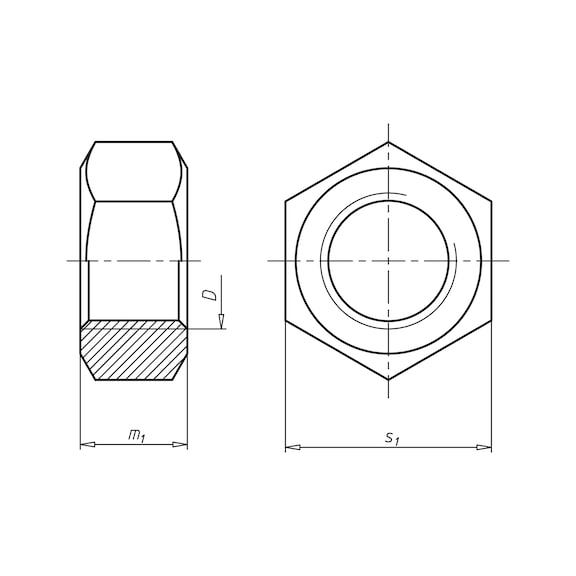

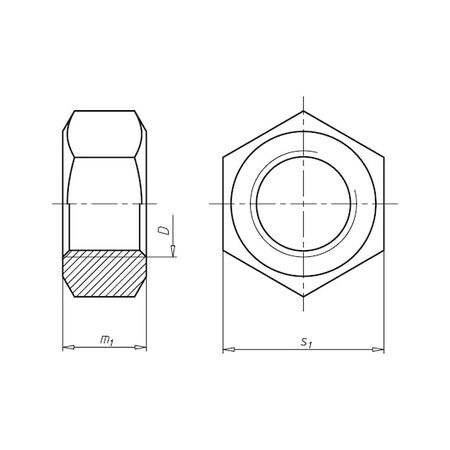

Technical Specifications
- Nominal diameter: 9/16 inch (14.29 mm)
- Height: 0.496 inch (12.6 mm)
- Width across flats: 13/16 inch (20.64 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 12
- Dimensions (H x L x W): 12.6mm x 20.64mm x 20.64mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 standard for hexagon nuts
- Material: Plain GR8 steel for high strength
- Thread type: UNC with 12 threads per inch
- Mechanical properties regulated by SAE J995
- Standard thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical fastening in machinery and automotive assemblies
- Industrial equipment requiring UNC thread compatibility
- General purpose fastening in construction and maintenance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Recyclable steel material supports sustainable manufacturing
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Nut ASME B18.2.2 Plain GR8 Steel UNC 25 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
