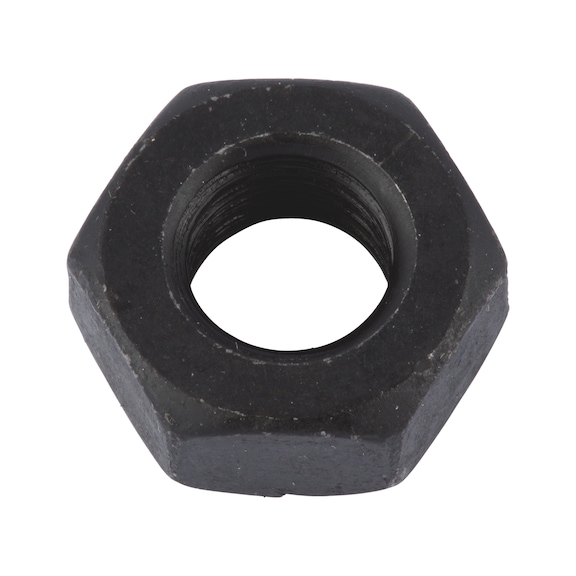

Hexagon Nut ASME B18.2.2 | Plain GR8 Steel | UNC Thread | @Pack of 25 | by Wurth
Hexagon Nut ASME B18.2.2 made from durable plain GR8 steel, designed for high-strength mechanical fastening. With UNC threads and 11 threads per inch, this nut is perfect for industrial assembly and general-purpose fastening in automotive and construction applications. Ideal for qualified personnel to ensure proper torque and fitment, it meets ASME standards for reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | Plain GR8 Steel | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7739362
Alternatively Known As: Hex Nut UNC, Inch Hex Nut, GR8 Steel Hex Nut, ASME B18.2.2 Nut
Technical Specifications
- Nominal diameter: 5/8 inch (15.875 mm)
- Height: 0.559 inch (14.2 mm)
- Width across flats: 15/16 inch (23.81 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 11
- Dimensions (H x L x W): 14.2mm x 23.81mm x 23.81mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 standard for hexagon nuts
- Material: Plain GR8 steel for high strength
- Thread type: UNC with 11 threads per inch
- Mechanical properties regulated by SAE J995
- Standard thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fitment.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring inch-sized hex nuts
- General purpose fastening in automotive and construction
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Recyclable steel material supports sustainability
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications.
