Trade Discount 20%

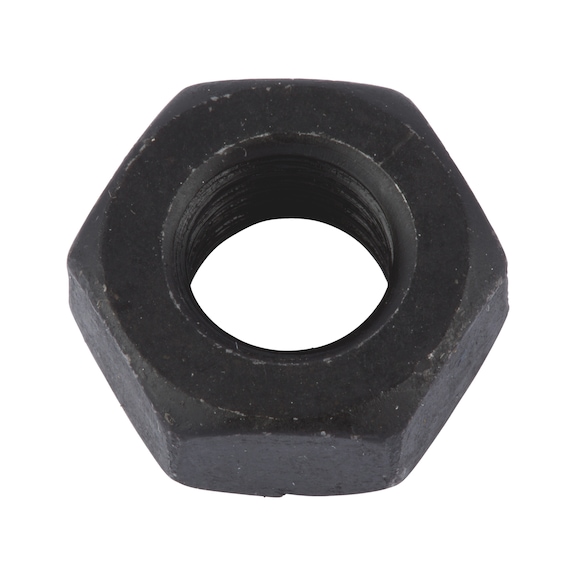

Hexagon Nut ASME B18.2.2 | Plain GR8 Steel | UNC Thread | @Pack of 50 | by Wurth
Hexagon Nut ASME B18.2.2 made from durable plain GR8 steel is perfect for mechanical fastening in automotive, machinery, and construction applications. With UNC thread compatibility and 14 threads per inch, this nut ensures reliable performance and strength. Ideal for general industrial use, it meets ASME standards for quality and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | Plain GR8 Steel | UNC Thread | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 7739343
Alternatively Known As: Hex nut, Hexagonal nut, UNC nut, GR8 steel nut, Inch thread nut
Technical Specifications

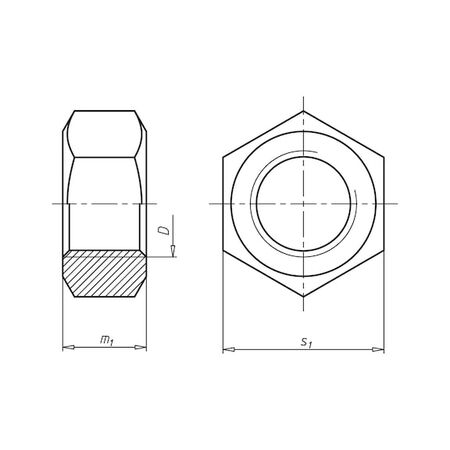

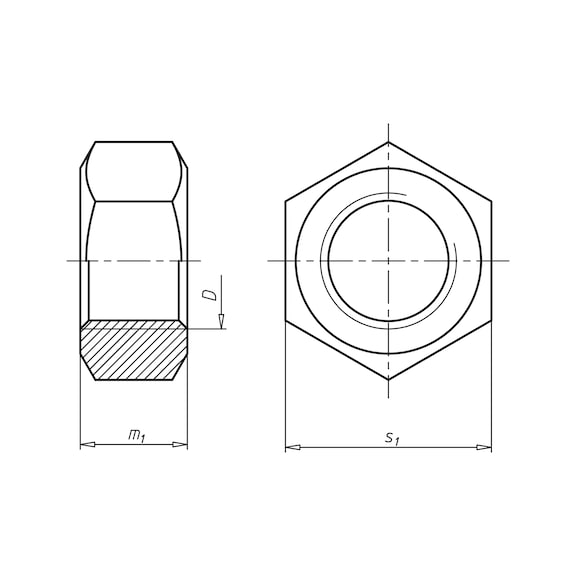

- Nominal diameter: 7/16 inch (11.11 mm)
- Height: 0.385 inch (9.78 mm)
- Width across flats: 5/8 inch (15.88 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 14
- Mechanical properties per SAE J995
- Thread tolerance per ASME B1.1 = 2B
- Dimensions (H x L x W): 9.78mm x 15.88mm x 15.88mm
- Weight: 0.05 kg
Key Features
- Complies with ASME B18.2.2 hexagon nut standards
- Material: Plain GR8 steel for high strength
- Thread type: UNC with 14 threads per inch
- Mechanical properties regulated by SAE J995
- Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
- Mechanical fastening in automotive, machinery, and construction
- Use in equipment requiring UNC thread compatibility
- General industrial and maintenance applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Recyclable steel material supports sustainability
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Nut inch size ASME B18.2.2 plain GR8 steel UNC 50 PCS is available for immediate purchase, ideal for mechanical and industrial fastening applications.
