Hexagon Nut with Clamping Piece DIN 980 | Steel 8 | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Hexagon Nut with Clamping Piece DIN 980 is designed for secure fastening in various applications, featuring a robust steel construction with property class 8. Its zinc-plated and blue passivated surface ensures excellent corrosion resistance, making it ideal for automotive, construction, and industrial uses. This nut locks against loosening through a reliable clamping mechanism, ensuring safety and durability in mechanical assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut with Clamping Piece DIN 980 | Steel 8 | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 3696
Alternatively Known As: Clamping Hex Nut, Locking Hex Nut, DIN 980 Nut, Metal Lock Nut, Vibration Resistant Nut
Technical Specifications

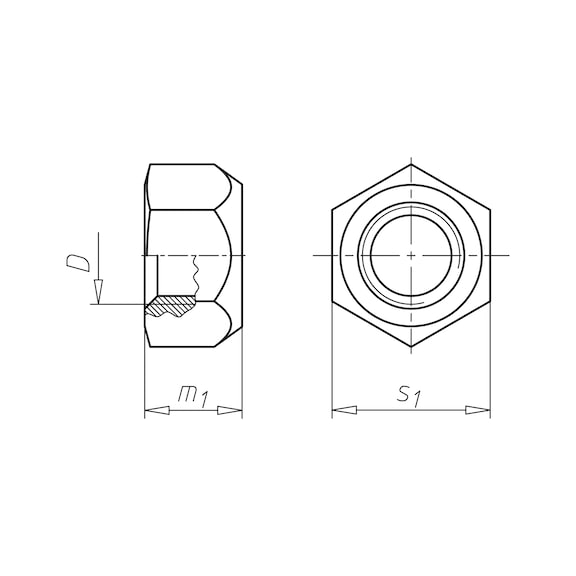

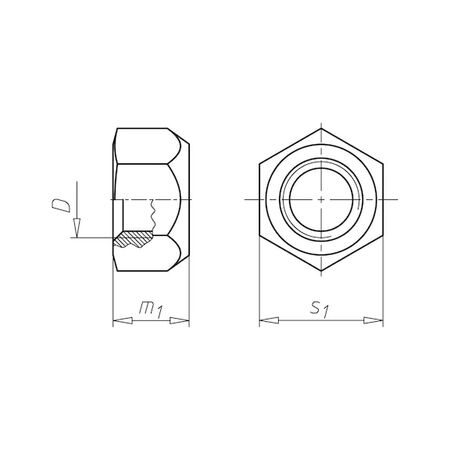

- Thread type x nominal diameter (D): M6
- Height (m1): 6 mm
- External drive (s1): WS10
- Standards: DIN 980 (withdrawn, replaced by ISO 7042)
- Material: Steel
- Property class: 8
- Surface: Zinc plated with blue passivation
- Locking device operating principle: Single part clamping nut metal
- Locking function: Locking against loosening by clamping
- Thread type: Metric thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6mm x 10mm x 10mm
- Weight: 0.05 kg
Key Features
- All-metal hexagon nut with clamping piece for secure locking
- Locking against loosening by clamping mechanism
- Made from steel with property class 8 for high strength
- Zinc plated with blue passivation for corrosion resistance
- Metric thread type M6 with external drive WS10
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring vibration resistance
- General industrial use where locking against loosening is needed
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction applications requiring secure fastening.
