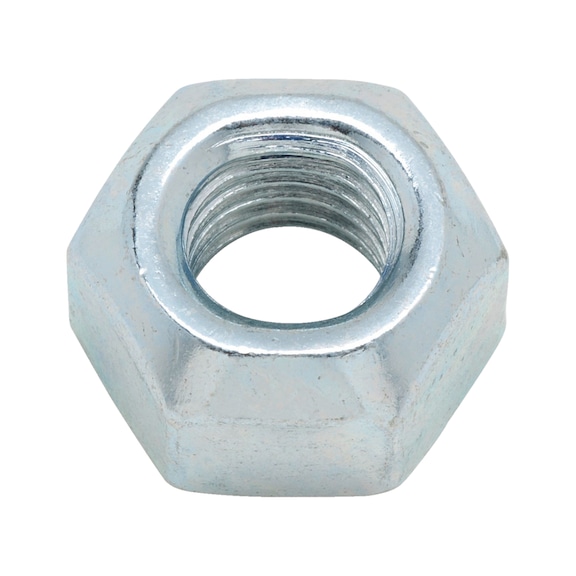

Hexagon Nut with Clamping Piece DIN 980 Zinc Plated Steel Thermal Capacity 120°C Variant-1 Wurth
Hexagon Nut with Clamping Piece DIN 980 is designed for secure mechanical fastening in various applications
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications

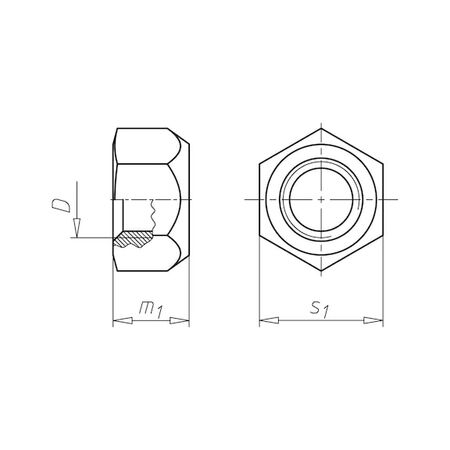

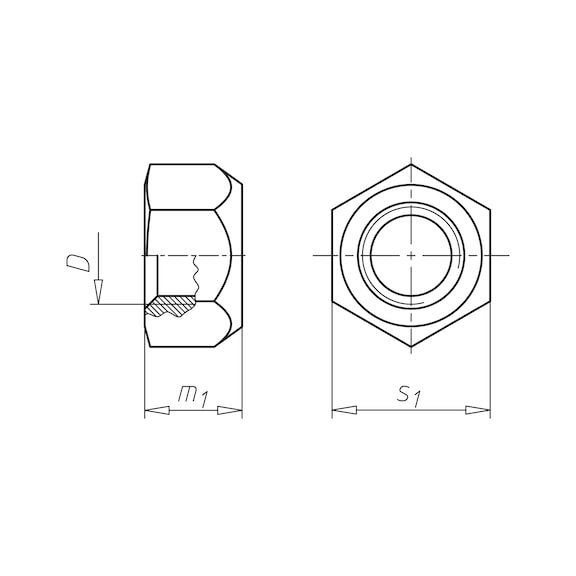

- Thread type x nominal diameter (D): M6
- Height (m1): 6 mm
- External drive (s1): WS10
- Material: Steel
- Property class: 10
- Surface: Zinc plated thick-layer passivation
- Locking device operating principle: Single part clamping nut metal
- Locking function: Locking against loosening by clamping
- Thread type: Metric thread
- Thread form: Standard metric thread
- RoHS-compliant: Yes
- Thermal capacity: Up to 120°C
- Dimensions (H x L x W): 6mm x 10mm x 10mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free zinc thick-film passivation (VZD) for corrosion resistance
- Locking against loosening by clamping with single part metal clamping nut
- Thermal capacity up to 120°C
- Even coat distribution for enhanced durability
- Complies with DIN 980 standard (withdrawn, replaced by ISO 7042)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring vibration resistance
- General industrial use requiring secure locking nuts
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Chromium (VI)-free coating reduces environmental and health hazards
- RoHS-compliant material ensures reduced toxic substance use
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
