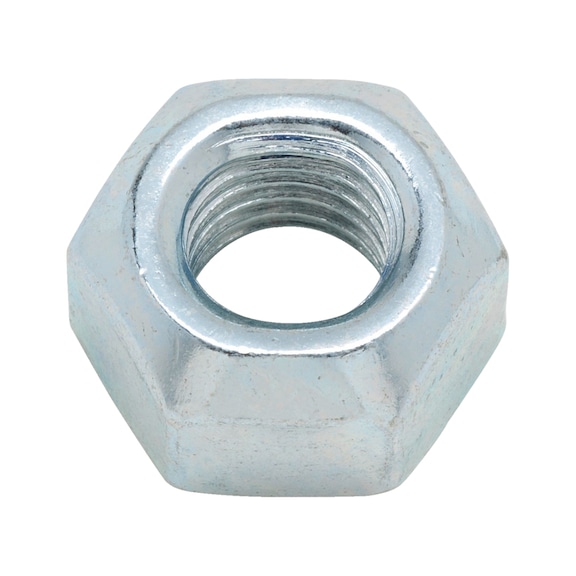

Hexagon Nut with Clamping Piece DIN 980 Zinc Plated Steel Vibration Resistant Wurth
Hexagon Nut with Clamping Piece DIN 980 is designed for secure mechanical fastening, featuring a zinc plated steel construction that ensures corrosion resistance
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

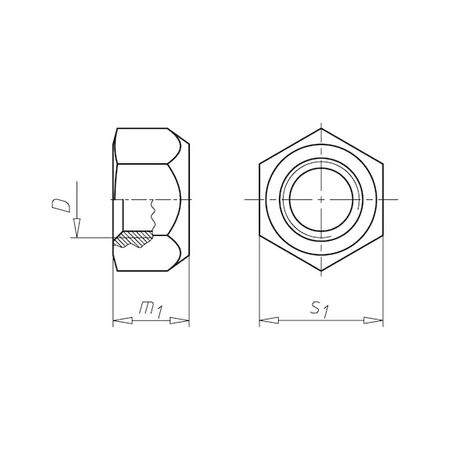

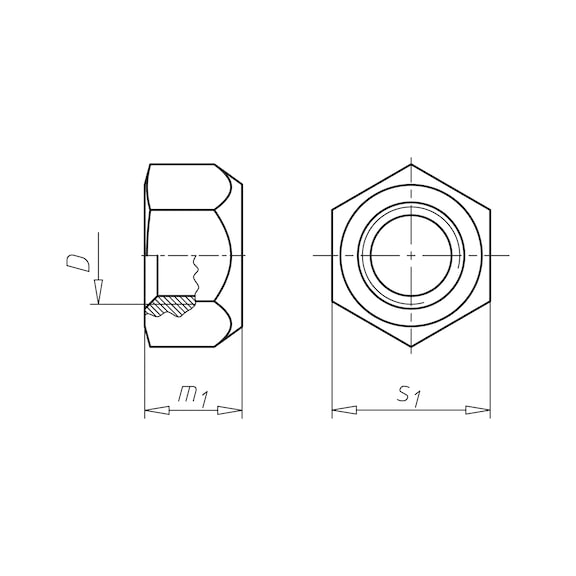

Technical Specifications
- Thread type x nominal diameter (D): M12
- Height (m1): 12 mm
- External drive (s1): WS19
- Standards: DIN 980 (withdrawn, replaced by ISO 7042)
- Material: Steel
- Property class: 10
- Surface: Zinc plated thick-layer passivation (VZD)
- Locking device operating principle: Single part clamping nut metal
- Locking function: Locking against loosening by clamping
- Thread type: Metric thread
- Thread form: Standard metric thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 12mm x 19mm x 19mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free zinc thick-film passivation (VZD) for corrosion resistance
- Thermal capacity up to 120°C
- Even coating distribution
- Locking against loosening by clamping with single part metal clamping nut
- RoHS-compliant
- Steel material with property class 10
- Metric standard thread (M12) with standard metric thread form
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring secure locking nuts
- Construction and structural applications needing vibration resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium (VI)-free coating reduces environmental and health hazards
- RoHS-compliant material ensures reduced toxic substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications requiring secure locking nuts.
