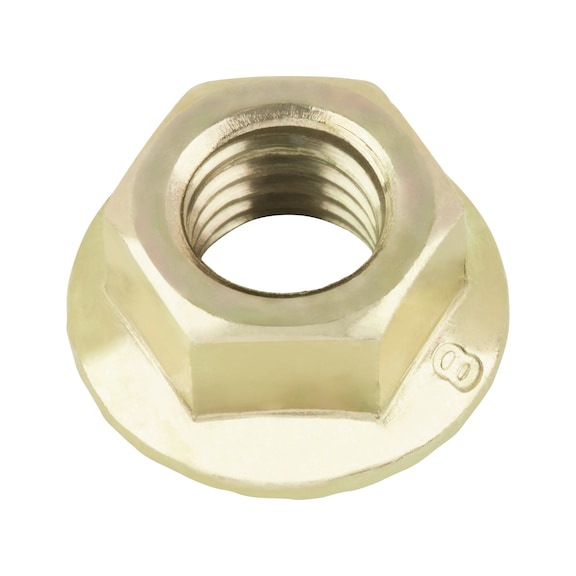

Hexagon Nut with Flange M10x1.25 | Zinc Plated Yellow | High Tensile Strength Class 8 | @Pack of 50 | by Wurth
Hexagon Nut with Flange M10x1.25 offers high tensile strength Class 8 and a zinc plated yellow finish for enhanced corrosion resistance. Perfect for automotive and machinery applications, this nut features a serrated flange that spreads clamping load without the need for a washer, ensuring secure fastening in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut with Flange M10x1.25 | Zinc Plated Yellow | High Tensile Strength Class 8 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 394910125
Alternatively Known As: Flanged Hex Nut, Serrated Flange Nut, M10 Fine Thread Nut, High Tensile Hex Nut
Technical Specifications
- Thread type x nominal diameter x pitch: MF10 x 1.25
- Flange diameter: 18.7 mm
- Height: 9.5 mm
- External drive (spanner width): WS14
- Material: Steel
- Property class: 8
- Surface finish: Zinc plated yellow
- Dimensions (H x L x W): 9.5mm x 18.7mm x 14mm
- Weight: 0.02 kg
Key Features
- Zinc yellow plated for corrosion resistance
- High tensile strength Class 8
- Hexagon nut with serrated flange to spread clamping load without washer
- Reduced spanner width for easier installation
- Fine pitch thread MF10 x 1.25
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for a wide range of vehicles
- Equipment: Used in various machinery and equipment requiring secure fastening
- General: Ideal for applications needing high tensile strength and flange nut benefits
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagon Nut with Flange M10x1.25 is available for immediate purchase, ideal for automotive and equipment fastening applications.
