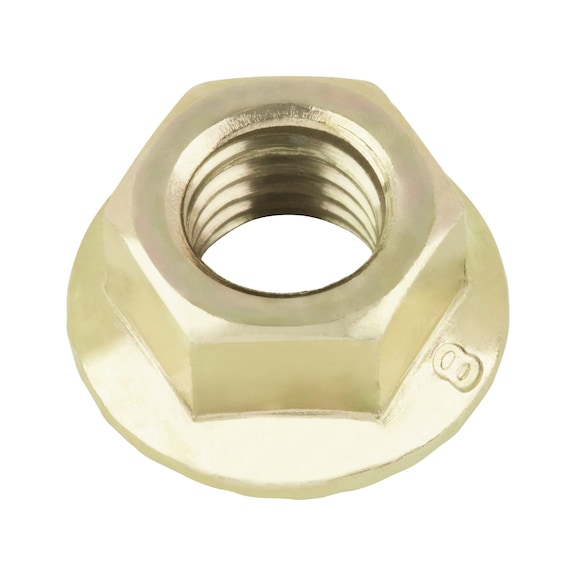

Hexagon Nut with Flange M6 | Zinc Plated Yellow | High Tensile Class 8 | @Pack of 50 | by Wurth
Hexagon Nut with Flange M6 is designed for secure fastening in automotive and machinery applications. Featuring a zinc plated yellow finish for corrosion resistance and high tensile strength Class 8, this nut eliminates the need for a washer with its serrated flange. Ideal for tight spaces, it ensures a reliable grip and compliance with structural design standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut with Flange M6 | Zinc Plated Yellow | High Tensile Class 8 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 39496
Alternatively Known As: Flanged Hex Nut M6, Serrated Flange Nut, High Tensile Hex Nut

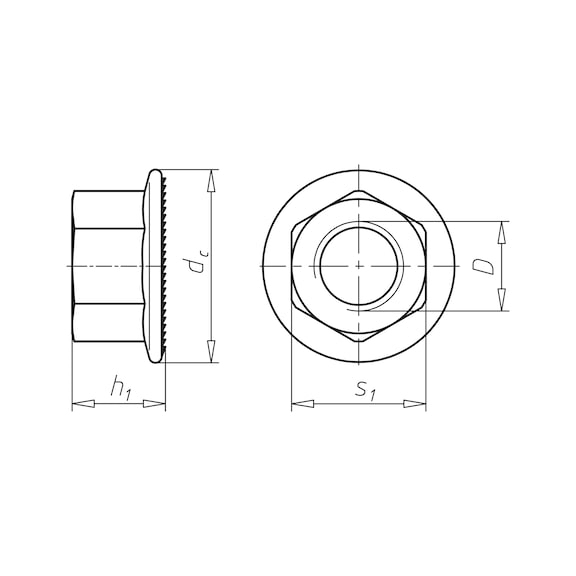

Technical Specifications
- Thread type x nominal diameter (D): M6
- Height (h1): 5.9 mm
- Flange diameter (dc): 13.5 mm
- External drive (s1): WS10
- Material: Steel
- Property class: 8
- Surface: Zinc plated yellow
- Thread form: Standard metric thread
- Dimensions (H x L x W): 6mm x 6mm x 10mm
- Weight: 0.01 kg
Key Features
- Zinc plated yellow for corrosion resistance
- High tensile strength Class 8
- Hexagon nut with serrated flange to spread clamping load without washer
- Reduced spanner width for use in tight spaces
- Serrations on flange for secure locking
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for a wide range of vehicles
- Equipment: Used in various machinery and equipment requiring secure fastening
- General: Ideal for applications needing high tensile strength and flange nuts
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagon Nut with Flange M6 Zinc Yellow High Tensile Class 8 is available for immediate purchase, ideal for automotive and equipment fastening applications.
