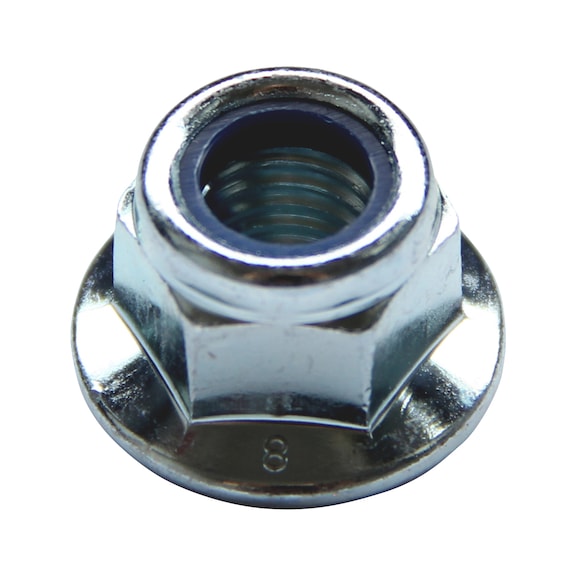

Hexagon Nut with Flange & Nylon Insert | High-Temperature Resistance | Zinc-Plated | @Pack of 50 | by Wurth
Hexagon Nut with Flange & Nylon Insert is designed for secure mechanical fastening in automotive and construction applications. With a high-temperature resistance of up to 120°C and a wide flange that distributes load, this nut ensures a stable connection even in high vibration environments. Ideal for industrial assembly, it complies with EN 1666 standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut with Flange & Nylon Insert | High-Temperature Resistance | Zinc-Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 5119710
Alternatively Known As: Flanged Hex Nut, Nylon Insert Lock Nut, Self-Locking Hex Nut, EN 1666 Nut
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1
- Height: 13.5 mm
- Flange diameter: 21.8 mm
- External drive: WS16
- Material: Steel
- Property class: 8
- Surface: Zinc plated, blue passivated
- Design: With flange
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- RoHS-compliant: Yes
- Dimensions (H x L x W): 13.5mm x 21.8mm x 21.8mm
- Weight: 0.05 kg
Key Features
- Nylon insert deforms over bolt thread, locking the thread into place
- Retains locking ability at temperatures up to 120°C
- Wide flange acts as an integrated washer distributing load over a wider area
- Provides a stable and secure connection
- Complies with EN 1666 standard replacing DIN 6926
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in automotive, machinery, and construction
- Securing bolts in high vibration environments
- Industrial assembly requiring secure locking nuts
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications requiring secure locking nuts.
