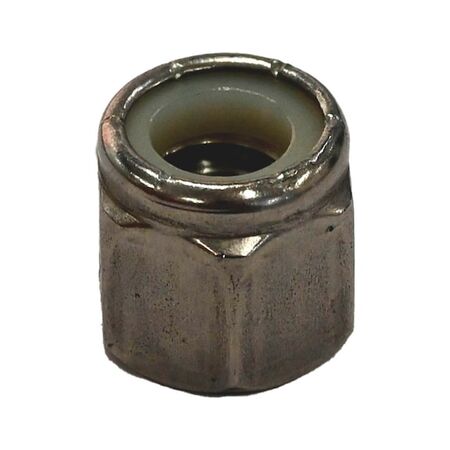

Hexagon Nut High Profile | 316 Stainless Steel | Non-Metal Insert | UNC Thread | @Pack of 25 | by Wurth
Hexagon Nut High Profile made from 316 stainless steel with a non-metal insert and UNC thread is perfect for industrial machinery assembly and automotive repair. Designed for high corrosion resistance, this nut ensures secure fastening in marine and other demanding applications, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut High Profile | 316 Stainless Steel | Non-Metal Insert | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7715331
Alternatively Known As: Hex Nut 5/16 UNC Stainless Steel, High Profile Hex Nut with Insert, Clamping Nut 316 Stainless
Technical Specifications

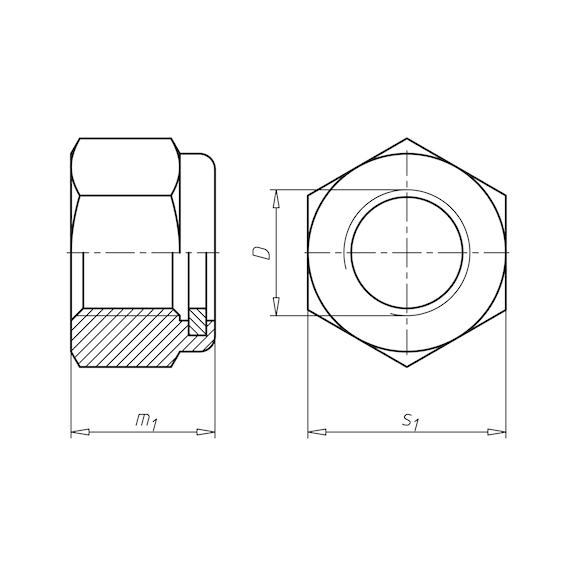

- Nominal diameter (D): 5/16 inch (7.94 mm)
- Material: Stainless steel AISI 316
- Surface: Plain
- Thread type: UNC
- Number of thread starts per inch: 18
- Height (m1): 8.9 mm
- Width across flats (s1): 1/2 inch (12.7 mm)
- Standard thread tolerance: ASME B1.1 = 2B (female thread)
- Dimensions (H x L x W): 8.9mm x 12.7mm x 12.7mm
- Weight: 0.05 kg
Key Features
- Made from stainless steel AISI 316 for excellent corrosion resistance
- High profile hexagon nut with clamping piece and non-metal insert
- Imperial UNC thread type with 18 threads per inch
- Standard thread tolerance according to ASME B1.1 = 2B for female thread
- Plain surface finish
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Industrial machinery assembly
- Automotive repair and maintenance
- Marine and corrosion-resistant applications
- General fastening requiring high corrosion resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagon Nut High Profile with Clamping Piece Non Metal Insert is available for immediate purchase, ideal for industrial and marine applications requiring corrosion-resistant fasteners.
