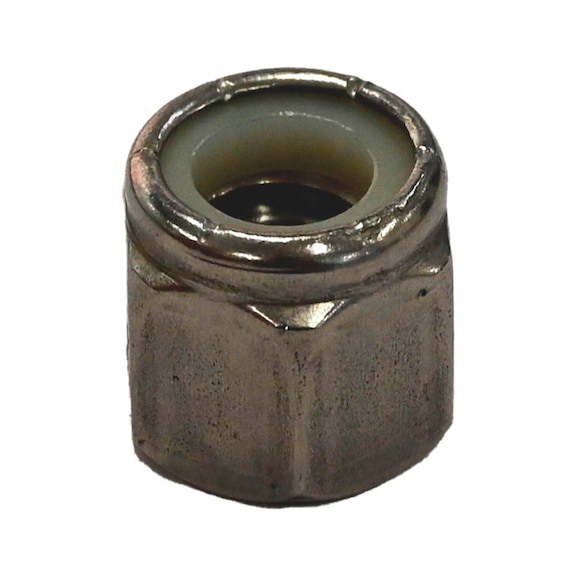

Hexagon Nut High Profile with Clamping Piece | 18-8 Stainless Steel | UNC Thread Type | @Pack of 50 | by Wurth
Hexagon Nut High Profile with Clamping Piece is crafted from durable 18-8 stainless steel, ensuring excellent corrosion resistance. Designed for UNC thread applications, this nut is perfect for mechanical fastening in machinery and industrial assembly. With a plain surface finish and a secure clamping feature, it’s ideal for maintenance and repair tasks, providing reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut High Profile with Clamping Piece | 18-8 Stainless Steel | UNC Thread Type | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 7714331
Alternatively Known As: Hex Nut, Clamping Nut, Stainless Steel Hex Nut, UNC Thread Nut

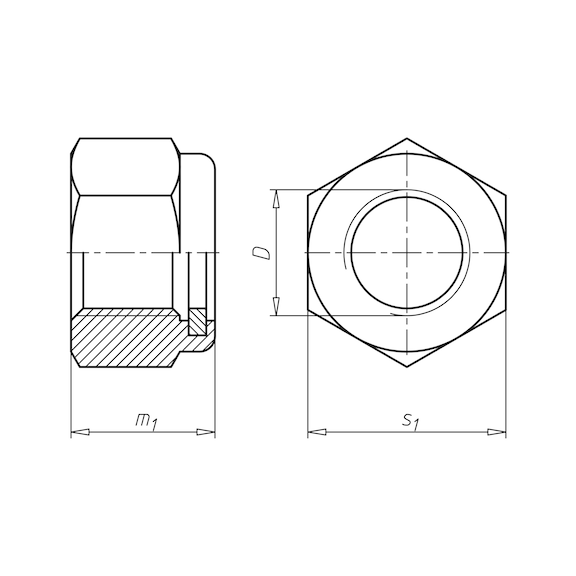

Technical Specifications
- Nominal diameter (D): 5/16 inch (7.94 mm)
- Material: Stainless steel AISI 304, 18-8
- Surface: Plain
- Thread type: UNC
- Number of thread starts per inch: 18
- Height (m1): 8.9 mm
- Width across flats (s1): 1/2 inch (12.7 mm)
- Standard thread tolerance: ASME B1.1 = 2B (female thread)
- Dimensions (H x L x W): 8.9mm x 12.7mm x 12.7mm
- Weight: 0.02 kg
Key Features
- High profile hexagon nut with clamping piece
- Made from 18-8 stainless steel (AISI 304) for corrosion resistance
- UNC thread type with 18 threads per inch
- Standard thread tolerance according to ASME B1.1 = 2B for female thread
- Plain surface finish
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring secure clamping
- Maintenance and repair of threaded components
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Corrosion-resistant stainless steel extends product life, reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Nut high profile with clamping piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
