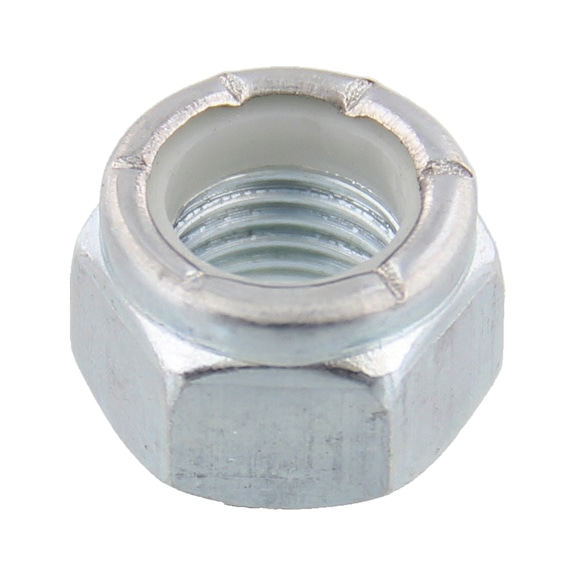

Hexagon Nut High Profile with Clamping Piece | Zinc Plated | Non-Metal Insert | UNC Thread | @Pack of 25 | by Wurth
Hexagon Nut High Profile with Clamping Piece is designed for secure mechanical fastening in machinery and equipment. Featuring a non-metal insert for enhanced locking and zinc plating for corrosion resistance, this nut is perfect for industrial assembly and maintenance of threaded components. Ideal for professionals seeking reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut High Profile with Clamping Piece | Zinc Plated | Non-Metal Insert | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7713050
Alternatively Known As: Hex Nut UNC, High Profile Hex Nut, Clamping Nut with Insert, Zinc Plated Hex Nut
Technical Specifications
- Nominal diameter (D): 1/2 inch
- Material: Steel
- Property class: GRC
- Surface finish: Zinc plated
- Thread type: UNC
- Number of thread starts per inch: 13
- Height (m1): 15 mm
- Width across flats (s1): 3/4 inch
- Dimensions (H x L x W): 15mm x 19mm x 19mm
- Weight: 0.05 kg
Key Features
- High profile hexagon nut with clamping piece
- Non-metal insert for secure locking
- Zinc plated for corrosion resistance
- Complies with ASME B18.16.6 mechanical properties
- Thread tolerance as per ASME B1.1 = 2B for female threads
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring secure clamping
- Maintenance and repair of threaded components
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagon Nut High Profile with Clamping Piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
