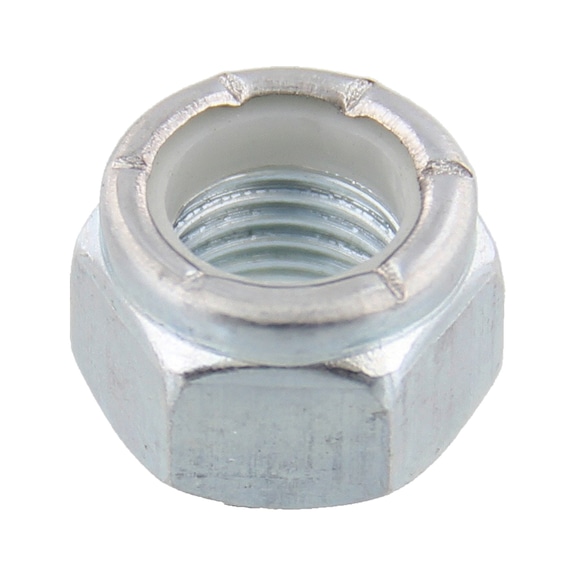

Hexagon Nut High Profile with Clamping Piece | Zinc Plated GRC Steel | UNC Thread | @Pack of 50 | by Wurth
Hexagon Nut High Profile with Clamping Piece is designed for secure mechanical fastening in machinery and equipment. Made from durable GRC steel with zinc plating for corrosion resistance, this nut complies with ASME B18.16.6 standards, ensuring reliable performance in industrial assembly and maintenance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut High Profile with Clamping Piece | Zinc Plated GRC Steel | UNC Thread | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 7713043
Alternatively Known As: Hex Nut UNC, High Profile Hex Nut, Clamping Nut, Zinc Plated Hex Nut, ASME B18.16.6 Nut
Technical Specifications
- Nominal diameter: 7/16 inch
- Material: Steel
- Property class: GRC
- Surface finish: Zinc plated
- Thread type: UNC
- Threads per inch: 14
- Height: 11.6 mm
- Width across flats: 5/8 inch
- Dimensions (H x L x W): 11.6mm x 15.88mm x 15.88mm
- Weight: 0.05 kg
Key Features
- High profile hexagon nut with clamping piece and non-metal insert
- Made from GRC steel with zinc plating for corrosion resistance
- Complies with ASME B18.16.6 mechanical properties standard
- Thread tolerance per ASME B1.1 standard (2B for female threads)
- Thread type: UNC with 14 threads per inch
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring secure clamping
- Maintenance and repair of threaded components
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications.
