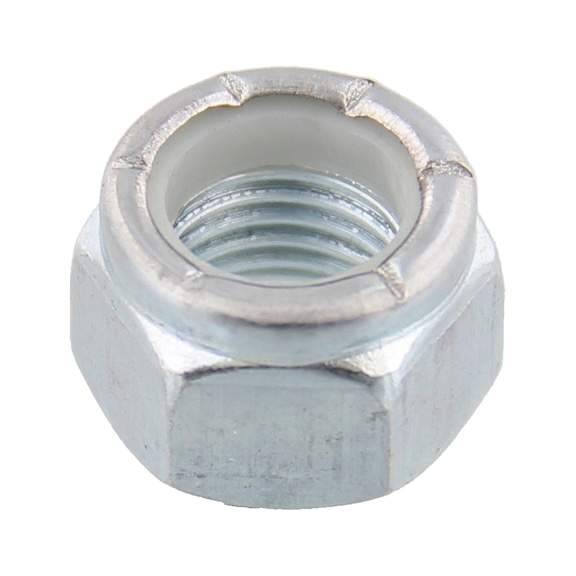

Hexagon Nut High Profile | Non-Metal Insert | Zinc Plated | 7/8 Inch | @Pack of 5 | by Wurth
Hexagon Nut High Profile with a non-metal insert and zinc plating is perfect for secure mechanical fastening in machinery and equipment. Designed for industrial assembly, this nut ensures high strength and durability, making it ideal for automotive, construction, and manufacturing sectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut High Profile | Non-Metal Insert | Zinc Plated | 7/8 Inch | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 7713087
Alternatively Known As: Hex Nut UNC, High Profile Hex Nut, Clamping Nut with Insert, Zinc Plated Hex Nut, ASME B18.16.6 Nut
Technical Specifications
- Nominal diameter (D): 7/8 inch
- Material: Steel
- Property class: GRC
- Surface finish: Zinc plated
- Thread type: UNC
- Number of thread starts per inch: 9
- Height (m1): 25.2 mm
- Width across flats (s1): 1 1/4 inch
- Dimensions (H x L x W): 25.2mm x 31.75mm x 31.75mm
- Weight: 0.05 kg
Key Features
- High profile hexagon nut with clamping piece
- Non-metal insert for secure locking
- Zinc plated for corrosion resistance
- Complies with ASME B18.16.6 mechanical properties
- Thread tolerance as per ASME B1.1 = 2B for female threads
- UNC thread type with 9 threads per inch
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring high strength and secure clamping
- Use in automotive, construction, and manufacturing sectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
- Durable steel construction supports long-term use minimizing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications.
