Hexagon Nut High Profile | Zinc Plated GRC Steel | UNF Fine Thread | Clamping Piece | @Pack of 25 | by Wurth
Hexagon Nut High Profile designed for mechanical fastening, featuring a zinc plated GRC steel construction and UNF fine thread for secure connections. Ideal for industrial assembly and machinery applications, this nut ensures corrosion resistance and durability, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut High Profile | Zinc Plated GRC Steel | UNF Fine Thread | Clamping Piece | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7713063
Alternatively Known As: Hex Nut, High Profile Hex Nut, Clamping Nut, UNF Thread Nut, Zinc Plated Hex Nut
Technical Specifications

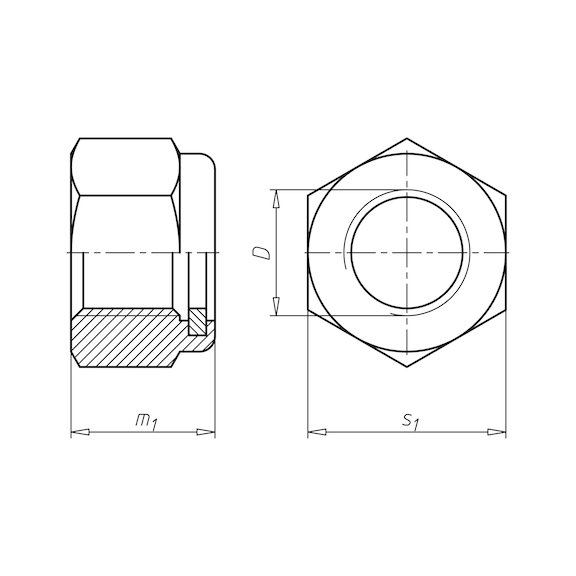

- Nominal diameter (D): 5/8 inch (15.875 mm)
- Material: Steel
- Property class: GRC
- Surface finish: Zinc plated
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 18
- Height (m1): 19 mm
- Width across flats (s1): 15/16 inch (23.81 mm)
- Mechanical properties per ASME B18.16.6
- Thread tolerance per ASME B1.1 = 2B (female threads)
- Dimensions (H x L x W): 19mm x 24mm x 24mm
- Weight: 0.05 kg
Key Features
- High profile hexagon nut with clamping piece and non-metal insert
- Made from GRC steel with zinc plating for corrosion resistance
- UNF fine thread with 18 threads per inch
- Complies with ASME B18.16.6 mechanical properties
- Thread tolerance as per ASME B1.1 standard (2B for female threads)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement for safety and performance.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring fine thread nuts
- Applications needing corrosion-resistant zinc plated steel nuts
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
- Durable steel construction supports long-term use minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications requiring fine thread hex nuts.
