Hexagon Nut High Profile | Zinc Plated GRC Steel | UNF Fine Thread | Clamping Piece | @Pack of 5 | by Wurth
Hexagon Nut High Profile with zinc plated GRC steel and UNF fine thread—ideal for mechanical fastening in machinery and automotive assemblies. Built for industrial applications, this nut ensures secure clamping with precise fastening, complying with ASME standards for reliability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut High Profile | Zinc Plated GRC Steel | UNF Fine Thread | Clamping Piece | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 7713074
Alternatively Known As: Hex Nut, Clamping Nut, Fine Thread Hex Nut, UNF Hex Nut, Zinc Plated Hex Nut

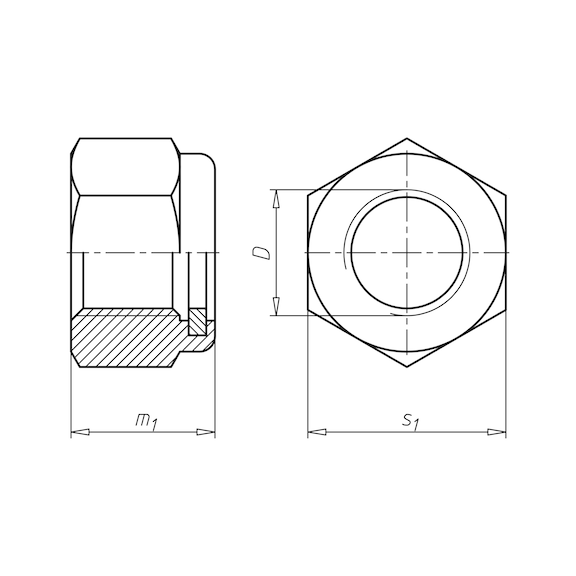

Technical Specifications
- Nominal diameter: 1 inch (25.4 mm)
- Material: Steel
- Property class: GRC
- Surface finish: Zinc plated
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 14
- Height: 26.5 mm
- Width across flats: 1 7/16 inch (36.5 mm)
- Mechanical properties per ASME B18.16.6
- Thread tolerance per ASME B1.1 = 2B (female threads)
- Dimensions (H x L x W): 26.5mm x 36.5mm x 36.5mm
- Weight: 0.1 kg
Key Features
- High profile hexagon nut with clamping piece and non-metal insert
- Made from GRC steel with zinc plating for corrosion resistance
- UNF fine thread with 14 threads per inch for precise fastening
- Complies with ASME B18.16.6 mechanical properties and ASME B1.1 thread tolerance standards
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and thread engagement.
Applications
- Mechanical fastening in machinery and automotive assemblies
- Industrial equipment requiring secure clamping with fine thread precision
- Maintenance and repair of equipment using imperial thread standards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Durable steel construction supports long-term reuse and reduces replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Nut High Profile with Clamping Piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
