Hexagon Nut High Profile | Zinc Plated GRC Steel | UNF Fine Thread | Clamping Piece | @Pack of 50 | by Wurth
Hexagon Nut High Profile with zinc plated GRC steel and UNF fine thread—ideal for mechanical fastening in machinery and automotive applications. Built for industrial use, this nut features a clamping piece for secure engagement and corrosion resistance, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut High Profile | Zinc Plated GRC Steel | UNF Fine Thread | Clamping Piece | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 7713044
Alternatively Known As: Hex Nut, Fine Thread Hex Nut, UNF Hex Nut, Clamping Nut, Zinc Plated Hex Nut

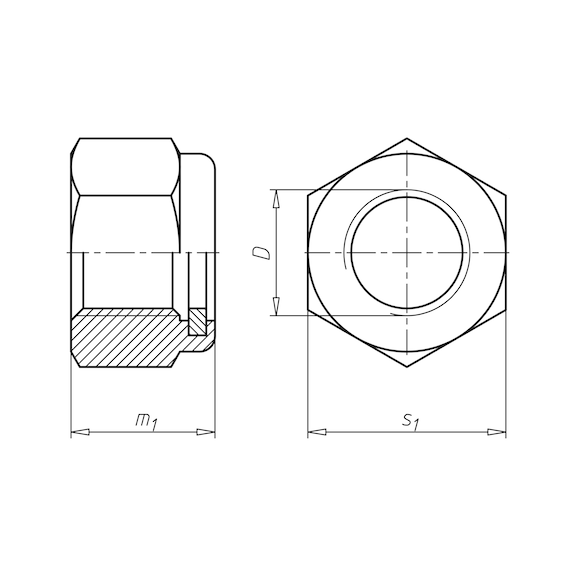

Technical Specifications
- Nominal diameter: 7/16 inch (11.11 mm)
- Material: Steel (GRC property class)
- Surface finish: Zinc plated
- Thread type: UNF (Unified National Fine)
- Threads per inch: 20
- Height: 11.6 mm
- Width across flats: 5/8 inch (15.88 mm)
- Mechanical properties per ASME B18.16.6
- Thread tolerance per ASME B1.1 = 2B (female threads)
- Dimensions (H x L x W): 11.6mm x 15.88mm x 15.88mm
- Weight: 0.05 kg
Key Features
- High profile hexagon nut with clamping piece and non-metal insert
- Made from GRC steel with zinc plating for corrosion resistance
- Fine thread UNF (Unified National Fine) with 20 threads per inch
- Complies with ASME B18.16.6 mechanical properties and ASME B1.1 thread tolerance standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
- Mechanical fastening in machinery and equipment
- Automotive and aerospace assembly
- Industrial and construction applications requiring fine thread nuts
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
