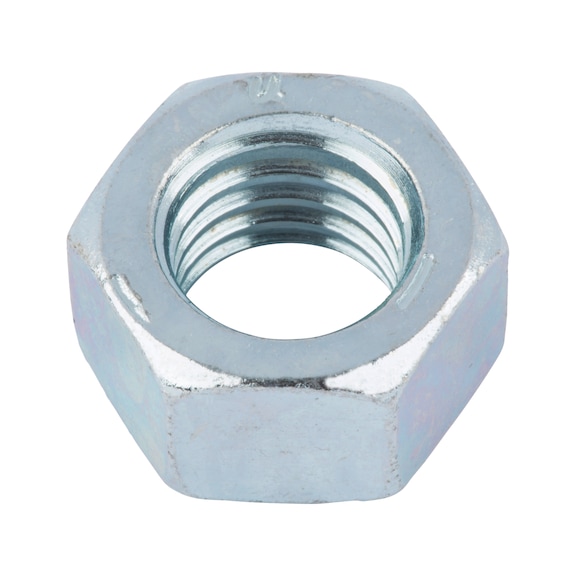

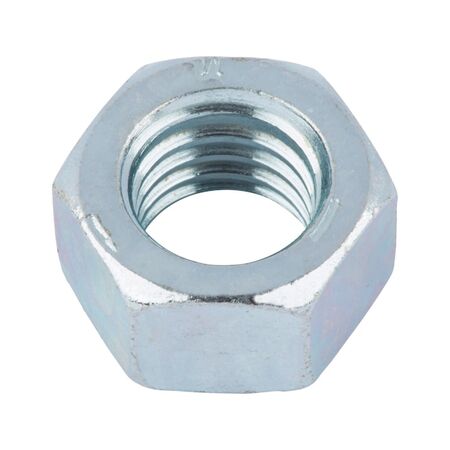

Hexagon Nut Inch ASME B1822 | Steel Zinc Plated | Blue Passivated | UNC Standard Thread | @Pack of 25 | by Wurth
Hexagon Nut Inch ASME B1822 is crafted from durable steel with a GR2 property class, featuring a zinc plated surface with blue passivation for enhanced corrosion resistance. Designed for UNC standard thread applications, this nut is perfect for mechanical fastening in machinery, industrial assembly, and general purpose use in automotive and construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Inch ASME B1822 | Steel Zinc Plated | Blue Passivated | UNC Standard Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7753010
Alternatively Known As: Hex Nut UNC, Steel Hex Nut, Zinc Plated Hex Nut, ASME B1822 Nut
Technical Specifications
- Material: Steel
- Property class: GR2
- Surface finish: Zinc plated with blue passivation
- Nominal diameter: 3/16 inch (4.76 mm)
- Thread type: UNC
- Threads per inch: 24
- Height: 0.117 inch (2.97 mm)
- Width across flats: 3/8 inch (9.53 mm)
- Thread tolerance: ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 2.97mm x 9.53mm x 9.53mm
- Weight: 0.01 kg
Key Features
- Made from steel with GR2 property class for strength
- Zinc plated surface with blue passivation for corrosion resistance
- UNC standard thread with 24 threads per inch
- Standard thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring UNC standard thread nuts
- General purpose fastening in automotive and construction
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Durable steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Hexagon Nut Inch ASME B1822 Steel Zinc Plated Blue Passivated UNC Thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
