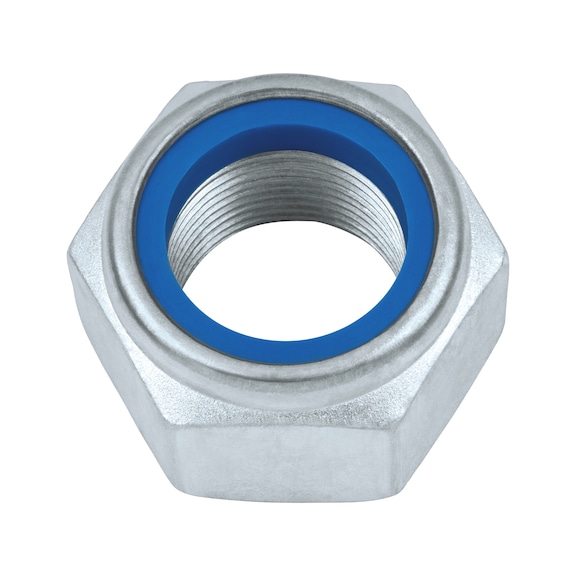

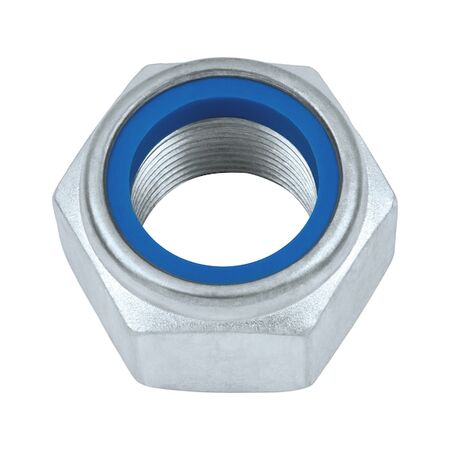

Hexagon Nut Low Profile with Clamping Piece | Fine Thread DIN 985 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Hexagon Nut Low Profile with Clamping Piece is designed for secure fastening in mechanical assemblies, featuring a fine thread and a unique clamping polyamide ring that prevents loosening. Ideal for automotive and machinery applications, this nut offers corrosion resistance with its zinc-plated and blue passivated finish, ensuring durability and reliability in various industrial uses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile with Clamping Piece | Fine Thread DIN 985 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 37001415
Alternatively Known As: Lock Nut, Nylon Insert Nut, Fine Thread Hex Nut, Low Profile Hex Nut, DIN 985 Nut
Technical Specifications
- Thread type x nominal diameter x pitch: M14 x 1.5
- Height: 14 mm
- External drive size: WS22
- Material: Steel
- Property class: I10I
- Surface finish: Zinc plated with blue passivation (A2K)
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Standards: DIN 985, UNI 7473
- RoHS-compliant: Yes
- Operating temperature range: -70°C to +120°C
- Dimensions (H x L x W): 14mm x 22mm x 22mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by ISO 10511, 10512, and 7040
- Locking function achieved by clamping polyamide ring preventing loosening
- Steel material with zinc plating and blue passivation for corrosion resistance
- Operating temperature range from -70°C to +120°C
- Strength class I10I with approximately 40% greater load capacity than I8I
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery applications needing fine thread locking nuts
- General industrial use where reduced load capacity nuts are suitable
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Nut low profile with clamping piece is available for immediate purchase, ideal for mechanical and industrial fastening applications.
