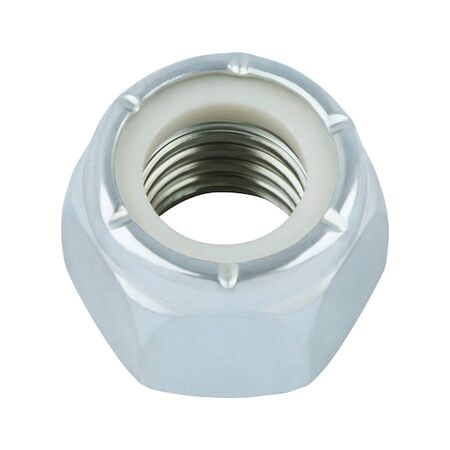

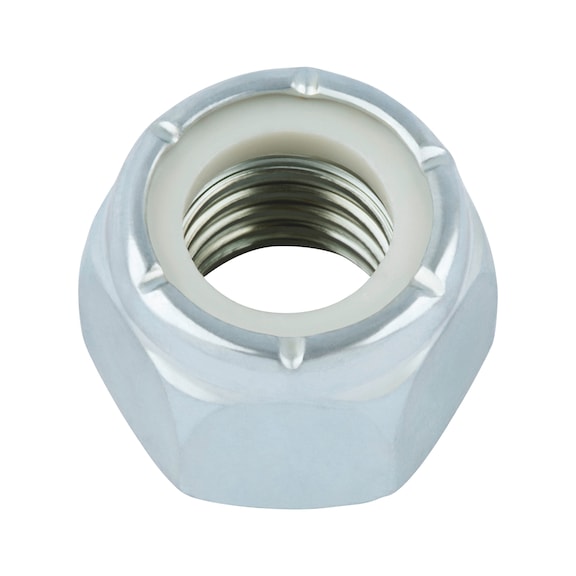

Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated & Blue Passivated | GR5 Steel | @Pack of 10 | by Wurth
Hexagon Nut Low Profile with Clamping Piece is designed for secure fastening in mechanical assemblies, automotive, and machinery applications. Made from GR5 steel with zinc plating and blue passivation, it offers excellent corrosion resistance and a locking function through a polyamide clamping ring, ensuring reliability in vibration-prone environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated & Blue Passivated | GR5 Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 378716
Alternatively Known As: Locking Hex Nut, Low Profile Hex Nut, Nylon Insert Nut, Prevailing Torque Nut, DIN 985 Nut Equivalent
Technical Specifications
- Height: 11.5 mm
- External drive: WS5/8
- Material: Steel
- Property class: GR5
- Surface finish: Zinc plated, blue passivated (A2K)
- Thread type and nominal diameter: UNF7/16
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- RoHS-compliant: Yes
- Operating temperature range: -70°C to +120°C
- Dimensions (H x L x W): 11.5mm x 15mm x 15mm
- Weight: 0.02 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, similar to ISO 10511, 10512, and 7040
- Locking function achieved by a polyamide clamping ring preventing loosening
- Steel material with zinc plating and blue passivation (A2K) for corrosion resistance
- Operating temperature range from -70°C to +120°C
- Strength class designation includes vertical bars for differentiation
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Situations needing vibration-resistant locking nuts
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Zinc plating with blue passivation enhances corrosion resistance, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
Wurth Hexagon Nut low profile with clamping piece is available for immediate purchase, ideal for mechanical, automotive, and industrial fastening applications.
