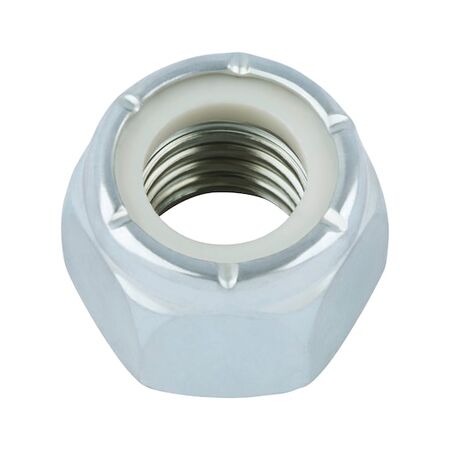

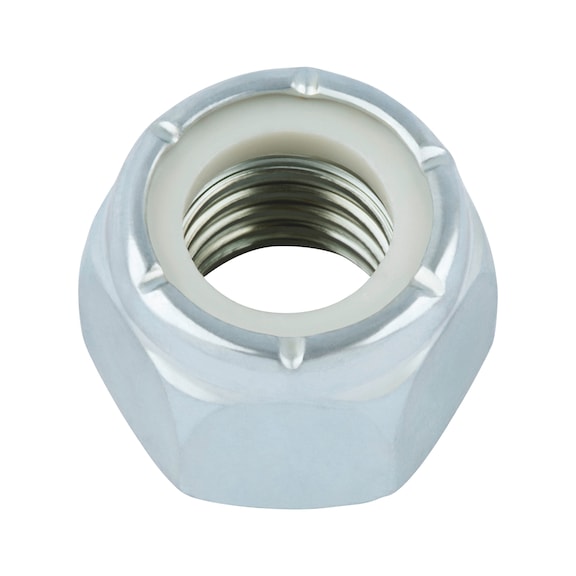

Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated & Blue Passivated | GR5 Steel | @Pack of 10 | by Wurth
Hexagon Nut Low Profile with Clamping Piece is designed for secure mechanical fastening in automotive and machinery applications. Featuring a zinc-plated and blue passivated finish, this GR5 steel nut ensures corrosion resistance and vibration security. Ideal for industrial use, it incorporates a polyamide clamping ring to prevent loosening, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated & Blue Passivated | GR5 Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 37814
Alternatively Known As: Low Profile Hex Nut, Locking Hex Nut, Nylon Insert Nut, DIN 985 Nut, Clamping Nut
Technical Specifications
- Height: 8 mm
- External drive: WS7/16
- Standard: DIN 985 similar
- Material: Steel
- Property class: GR5
- Surface finish: Zinc plated, blue passivated (A2K)
- Locking device principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Thread type and nominal diameter: UNF 1/4
- Operating temperature range: -70°C to +120°C
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 11mm x 11mm
- Weight: 0.02 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, similar to ISO 10511, 10512, and 7040
- Locking function achieved by a polyamide clamping ring preventing loosening
- High friction locking torque maintains pre-load force without thread damage
- Operating temperature range from -70°C to +120°C
- Strength class designation includes vertical bars for differentiation
- Zinc plated with blue passivation for corrosion resistance
- RoHS-compliant material
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in automotive, machinery, and equipment assembly
- Use in applications requiring vibration resistance and secure locking
- Suitable for industrial and construction fastening needs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant materials reduce hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Nut low profile with clamping piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
