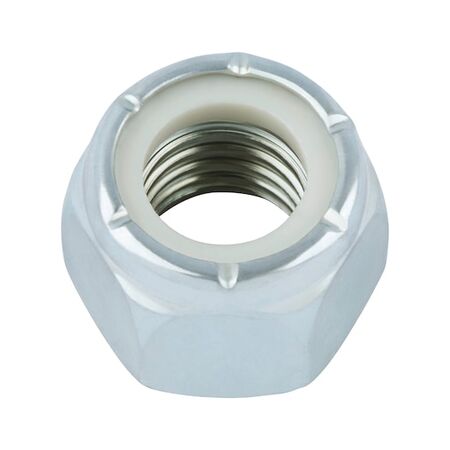

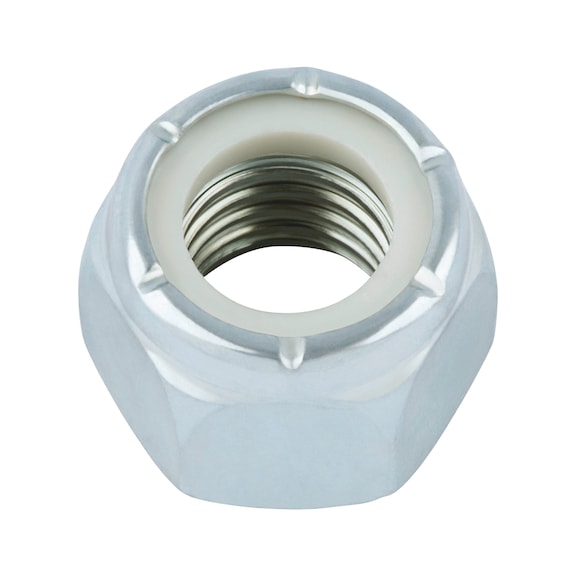

Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated A2K | GR5 Steel | @Pack of 10 | by Wurth
Hexagon Nut Low Profile with Clamping Piece is designed for secure fastening in mechanical assemblies, featuring a zinc-plated A2K finish and GR5 steel construction. Ideal for automotive and machinery applications, this nut prevents loosening with its innovative clamping polyamide ring, ensuring reliability even under vibration. Perfect for industrial use, it meets RoHS compliance for reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated A2K | GR5 Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 37838
Alternatively Known As: Low Profile Hex Nut, Locking Hex Nut, Clamping Nut, Zinc Plated Hex Nut, UNF Thread Nut

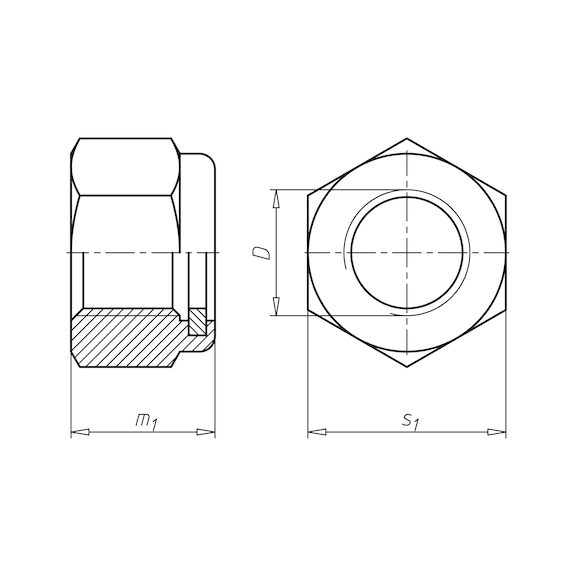

Technical Specifications
- Height: 11.5 mm
- External drive: WS9/16
- Material: Steel
- Property class: GR5
- Surface finish: Zinc plated with blue passivation (A2K)
- Thread type and nominal diameter: UNF 3/8
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Operating temperature range: -70°C to +120°C
- RoHS-compliant: Yes
- Dimensions (H x L x W): 11.5mm x 14mm x 14mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, similar to ISO 10511, 10512, and 7040
- Locking function via clamping polyamide ring preventing loosening
- Steel material with zinc plating and blue passivation (A2K) for corrosion resistance
- Operating temperature range from -70°C to +120°C
- Strength class GR5 with two vertical bars added before and after strength code for differentiation
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery applications needing locking nuts
- General industrial fastening where reduced load capacity nuts are suitable
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications requiring secure locking nuts.
