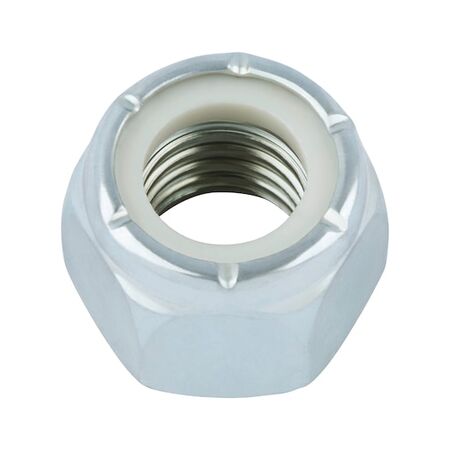

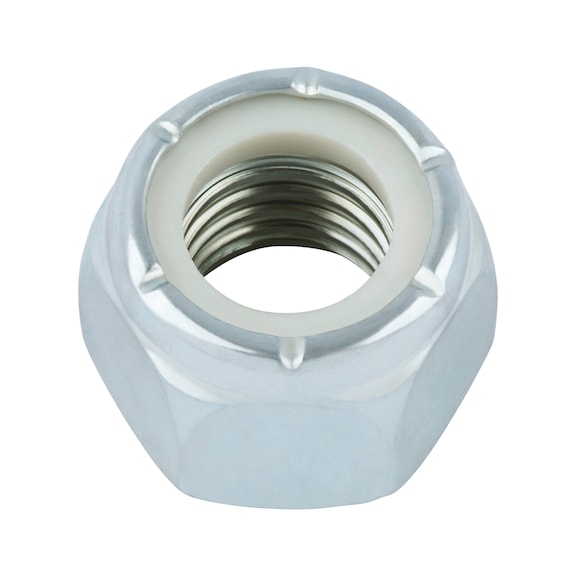

Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated Steel GR5 | Corrosion Resistant | @Pack of 10 | by Wurth
Hexagon Nut Low Profile with Clamping Piece is designed for reliable mechanical fastening in automotive and industrial applications. Made from zinc-plated steel GR5, it features a polyamide clamping ring that prevents loosening, ensuring secure connections even in high-vibration environments. Ideal for professionals seeking durability and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated Steel GR5 | Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 37858
Alternatively Known As: Lock Nut, Nylon Insert Nut, Prevailing Torque Nut, Self-Locking Hex Nut, DIN 985 Nut
Technical Specifications
- Height: 19 mm
- External drive size: WS15/16
- Material: Steel
- Property class: GR5
- Surface finish: Zinc plated with blue passivation (A2K)
- Thread type and nominal diameter: UNF5/8
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Operating temperature range: -70°C to +120°C
- RoHS-compliant: Yes

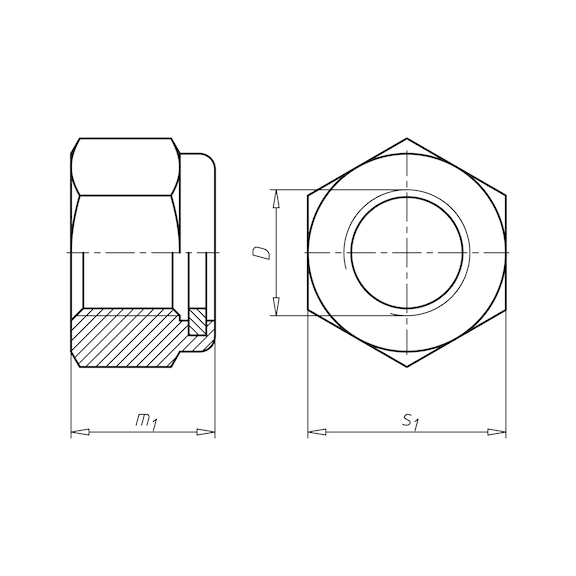

- Dimensions (H x L x W): 19mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, similar to ISO 10511, 10512, and 7040
- Locking function achieved by a polyamide clamping ring preventing loosening
- Steel material with zinc plating and blue passivation (A2K) for corrosion resistance
- Operating temperature range from -70°C to +120°C
- Strength class designation includes two vertical bars for differentiation
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and locking performance.
Applications
- Mechanical fastening in automotive, machinery, and industrial equipment
- Securing components where vibration resistance is required
- Use in assemblies requiring locking against loosening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Zinc plating with blue passivation enhances corrosion resistance, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
