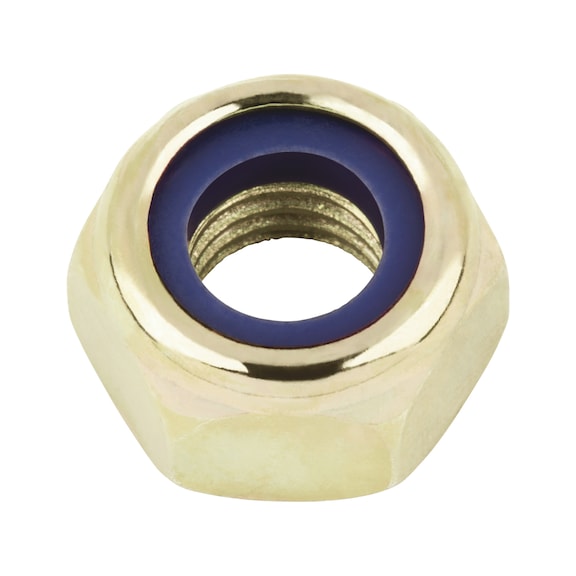

Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated & Yellow Chromated | I10I Strength Class | @Pack of 10 | by Wurth
Hexagon Nut Low Profile with Clamping Piece is designed for secure fastening in mechanical assemblies, featuring a zinc-plated and yellow chromated finish for enhanced corrosion resistance. Ideal for automotive and machinery applications, this nut offers a locking function with a polyamide clamping ring, ensuring vibration resistance and preventing loosening during operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile with Clamping Piece | Zinc-Plated & Yellow Chromated | I10I Strength Class | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 37018
Alternatively Known As: Locking Hex Nut, Low Profile Hex Nut, DIN 985 Nut, Nylon Insert Nut, Clamping Nut
Technical Specifications
- Thread type x nominal diameter (D): M18
- Height (m1): 18.5 mm
- External drive (s1): WS27
- Material: Steel
- Property class: I10I
- Surface: Zinc plated yellow chromated
- RoHS-compliant: No
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 18.5mm x 27mm x 27mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard replaced by DIN 10511, 10512, and 7040
- Locking function achieved by a polyamide clamping ring preventing loosening
- High friction locking torque without damaging thread surfaces
- Operating temperature range from -70°C to +120°C
- Strength class I10I with approximately 40% greater load capacity than I8I
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery applications needing locking nuts
- General industrial use where reduced load capacity nuts are suitable
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners and related standards
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Reusable locking mechanism reduces need for replacement and material consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Hexagon Nut low profile with clamping piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
