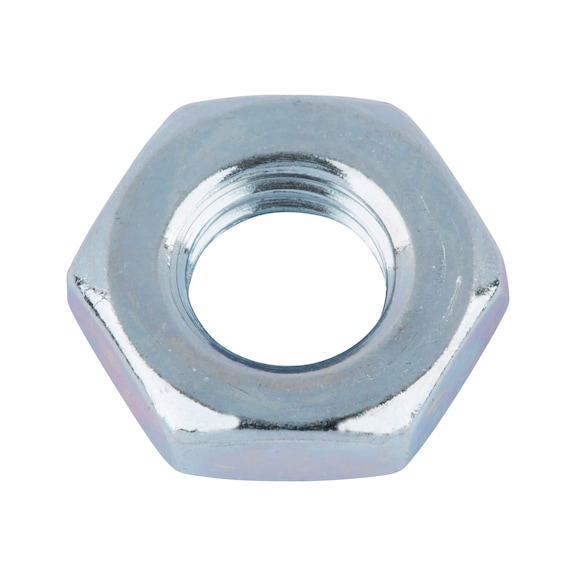

Hexagon Nut Low Profile DIN 439 | Zinc-Plated Steel | RoHS Compliant | @Pack of 50 | by Wurth
Hexagon Nut Low Profile DIN 439 is designed for secure fastening in mechanical assemblies, featuring a low profile and outer hexagon drive. Made from zinc-plated steel and RoHS compliant, it's perfect for automotive, machinery, and general industrial applications, ensuring durability and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 439 | Zinc-Plated Steel | RoHS Compliant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 3186
Alternatively Known As: Low Profile Hex Nut, DIN 439 Nut, Zinc Plated Hex Nut, Metric Hex Nut M6
Technical Specifications
- Thread type x nominal diameter (D): M6
- Height (m1): 3.2 mm
- External drive (s1): WS10
- Standards: DIN 439 (withdrawn, replaced by ISO 4035)
- Material: Steel
- Property class: 04
- Surface: Zinc plated with blue passivation (A2K)
- Form: B
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 10mm x 10mm
- Weight: 0.01 kg
Key Features
- Low profile hexagon nut with outer hexagon drive
- Made from steel with zinc plating and blue passivation (A2K)
- Complies with DIN 439 standard (withdrawn, replaced by ISO 4035)
- Metric standard thread type
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery components
- General industrial and construction use
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Hexagon Nut low profile DIN 439 steel zinc-plated M6 50 PCS is available for immediate purchase, ideal for mechanical and industrial fastening applications.
