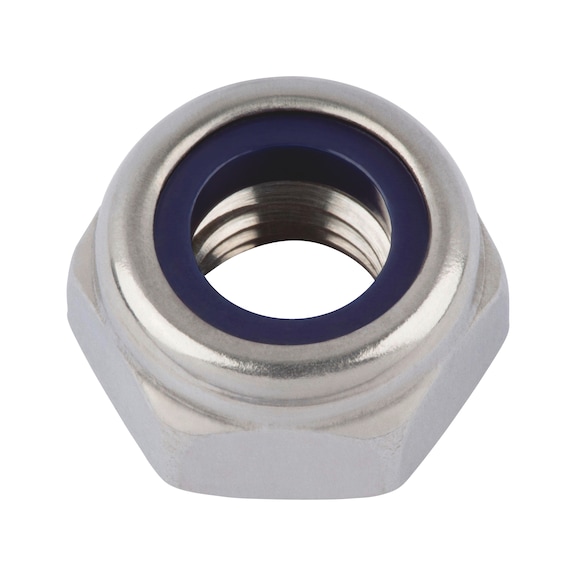

Hexagon Nut Low Profile DIN 985 A4 | M16 | Polyamide Insert | Corrosion Resistant | @Pack of 10 | by Wurth
Hexagon Nut Low Profile DIN 985 A4 is designed for secure fastening in mechanical assemblies, featuring a polyamide insert for enhanced locking against loosening. Ideal for automotive and industrial applications, this corrosion-resistant stainless steel nut operates effectively in temperatures ranging from -70°C to +120°C, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 A4 | M16 | Polyamide Insert | Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 39716
Alternatively Known As: Low Profile Hex Nut, DIN 985 Lock Nut, Stainless Steel Locking Nut M16, Polyamide Insert Nut
Technical Specifications
- Thread type x nominal diameter (D): M16
- Height (m1): 16 mm
- External drive (s1): WS24
- Standards: DIN 985 (withdrawn, replaced by 10511, 10512, 7040)
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Operating temperature range: -70°C to +120°C
- Dimensions (H x L x W): 16mm x 24mm x 24mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard replaced by 10511, 10512, and 7040
- Locking against loosening by clamping with polyamide ring
- No damage to thread surfaces during use
- Operating temperature range from -70°C to +120°C
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners and related standards
Environmental Benefits
- Made from stainless steel A4 which is corrosion resistant and durable, reducing replacement frequency
- RoHS-compliant material ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece DIN 985 A4 Stainless Steel M16 is available for immediate purchase, ideal for secure fastening in mechanical and industrial applications.
