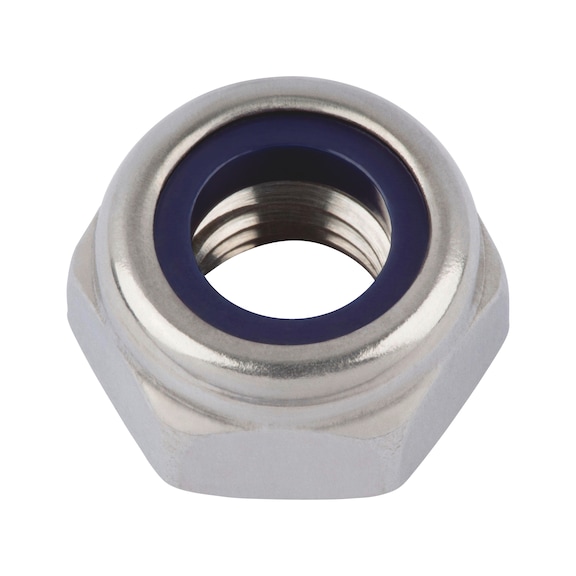

Hexagon Nut Low Profile DIN 985 A4 | Stainless Steel | Clamping Piece | M8 | @Pack of 10 | by Wurth
Hexagon Nut Low Profile DIN 985 A4 is designed for secure fastening in mechanical assemblies, featuring a stainless steel construction and a clamping piece for enhanced locking. Ideal for automotive and industrial applications, this nut prevents loosening with its polyamide ring, ensuring durability and compliance with AS/NZS 1252 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 A4 | Stainless Steel | Clamping Piece | M8 | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 3978
Alternatively Known As: Low Profile Hex Nut, DIN 985 Lock Nut, Stainless Steel Locking Nut M8, Polyamide Insert Nut
Technical Specifications
- Thread type x nominal diameter (D): M8
- Height (m1): 8 mm
- External drive (s1): WS13
- Standards: DIN 985 (withdrawn, replaced by 10511, 10512, 7040)
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 8mm x 13mm x 13mm
- Weight: 0.02 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard replaced by 10511, 10512, and 7040
- Locking function achieved by clamping part polyamide ring preventing loosening
- No damage to thread surfaces due to plastic ring locking mechanism
- Operating temperature range from -70°C to +120°C
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners and related standards
Environmental Benefits
- Made from stainless steel A4 which is corrosion resistant and durable, reducing replacement frequency
- RoHS-compliant ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece DIN 985 A4 Stainless Steel M8 is available for immediate purchase, ideal for secure fastening in mechanical and industrial applications.
