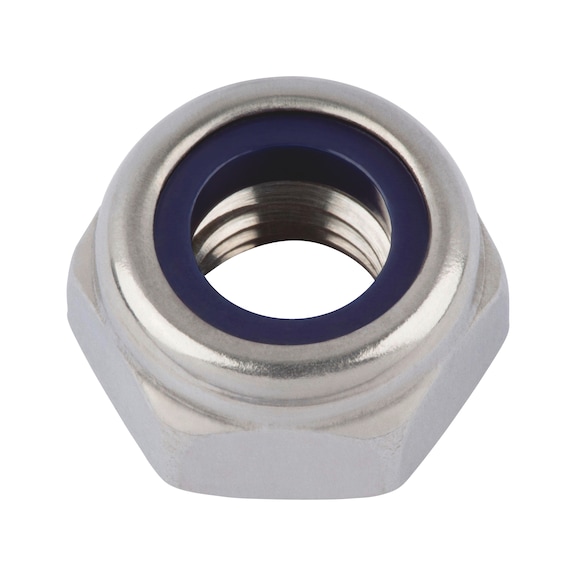

Hexagon Nut Low Profile DIN 985 A4 | Stainless Steel | M12 | Clamping Piece | @Pack of 10 | by Wurth
Hexagon Nut Low Profile DIN 985 A4 is designed for secure mechanical fastening with its M12 size and clamping piece feature. Ideal for automotive assembly and construction applications, this stainless steel nut offers a locking function that prevents loosening, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 A4 | Stainless Steel | M12 | Clamping Piece | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 39712
Alternatively Known As: Low Profile Hex Nut, DIN 985 Lock Nut, Stainless Steel Locking Nut M12, Polyamide Insert Nut
Technical Specifications
- Thread type x nominal diameter (D): M12
- Height (m1): 12 mm
- External drive (s1): WS19
- Standards: DIN 985 (withdrawn, replaced by DIN 10511, 10512, 7040)
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Operating temperature range: -70°C to +120°C
- Dimensions (H x L x W): 12mm x 19mm x 19mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by DIN 10511, 10512, and 7040
- Locking function achieved by a polyamide clamping ring preventing loosening
- No damage to thread surfaces due to clamping locking mechanism
- Operating temperature range from -70°C to +120°C
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly requiring vibration resistance
- Construction and structural applications needing secure locking nuts
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel A4 which is corrosion resistant and durable, reducing replacement frequency
- RoHS-compliant material ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece DIN 985 A4 Stainless Steel M12 is available for immediate purchase, ideal for mechanical and structural fastening applications.
