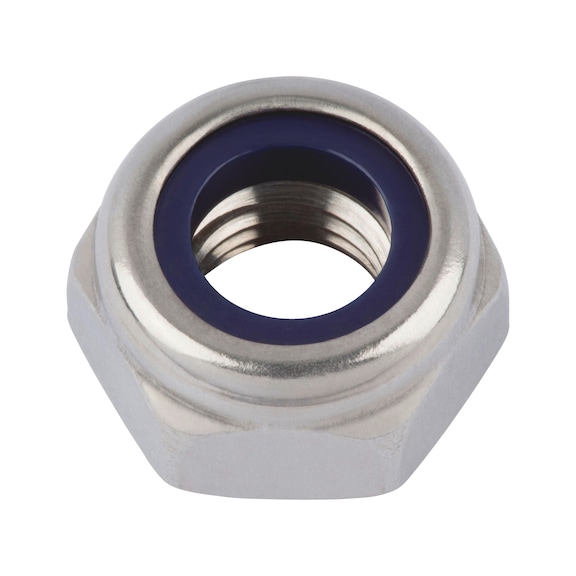

Hexagon Nut Low Profile DIN 985 A4 | Stainless Steel | Vibration Resistant | @Pack of 10 | by Wurth
Hexagon Nut Low Profile DIN 985 A4 is designed for secure mechanical fastening, featuring a stainless steel construction and a polyamide insert for vibration resistance. Ideal for automotive and industrial applications, this nut ensures reliable locking without damaging threads, making it perfect for machinery and equipment assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 A4 | Stainless Steel | Vibration Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 3974
Alternatively Known As: Low Profile Hex Nut, DIN 985 Nut, Stainless Steel Lock Nut, Polyamide Insert Nut, Vibration Resistant Nut
Technical Specifications
- Thread type x nominal diameter (D): M4
- Height (m1): 5 mm
- External drive (s1): WS7
- Standards: DIN 985
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Form: Low
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 5mm x 7mm x 7mm
- Weight: 0.01 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard replaced by 10511, 10512, and 7040
- Plastic ring secures screw thread providing locking torque to maintain preload
- No damage to thread surfaces during locking
- Operating temperature range from -70 °C to +120 °C
- Locking against loosening by clamping with polyamide ring
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and equipment
- Use in automotive and industrial assembly
- Applications requiring vibration resistance and secure locking
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A4 which is corrosion resistant and durable, reducing replacement frequency
- RoHS-compliant ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece DIN 985 A4 Stainless Steel M4 is available for immediate purchase, ideal for industrial and mechanical fastening applications.
