Hexagon Nut Low Profile DIN 985 | M16 | Zinc Plated Blue | Clamping Piece | @Pack of 25 | by Wurth
Hexagon Nut Low Profile DIN 985 M16 is designed for secure fastening in various applications, featuring a zinc-plated blue finish and a clamping piece for enhanced locking. Ideal for automotive, construction, and industrial use, this nut ensures vibration resistance and compliance with AS/NZS 1252 standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | M16 | Zinc Plated Blue | Clamping Piece | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 36816
Alternatively Known As: Locking Hex Nut, Nylon Insert Nut, Low Profile Hex Nut, DIN 985 Nut, Vibration Resistant Nut

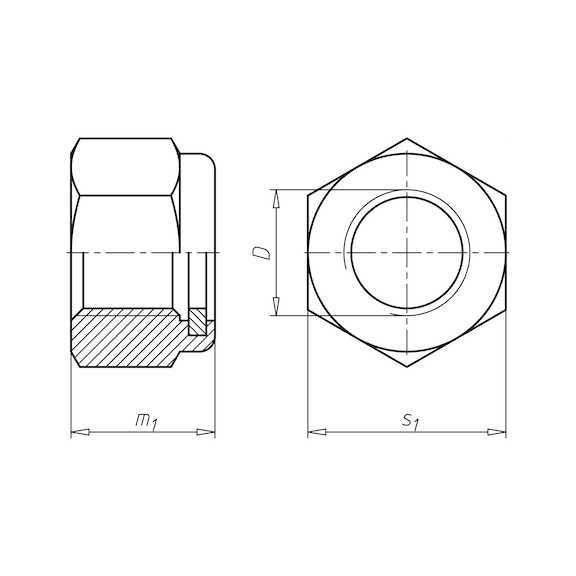

Technical Specifications
- Thread type x nominal diameter: M16
- Height (m1): 16 mm
- External drive (s1): WS24
- Material: Steel
- Property class: I8I
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 16mm x 24mm x 24mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by DIN 10511, 10512, and 7040
- Locking function achieved by a clamping polyamide ring preventing loosening
- High friction locking torque maintains preload force without damaging thread surfaces
- Operating temperature range from -70°C to +120°C
- Strength class designation I8I with two vertical bars before and after the strength code
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring vibration resistance
- General industrial use where secure locking nuts are needed
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners and locking nuts
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece DIN 985 Zinc Plated M16 is available for immediate purchase, ideal for industrial, automotive, and construction applications requiring secure locking nuts.
