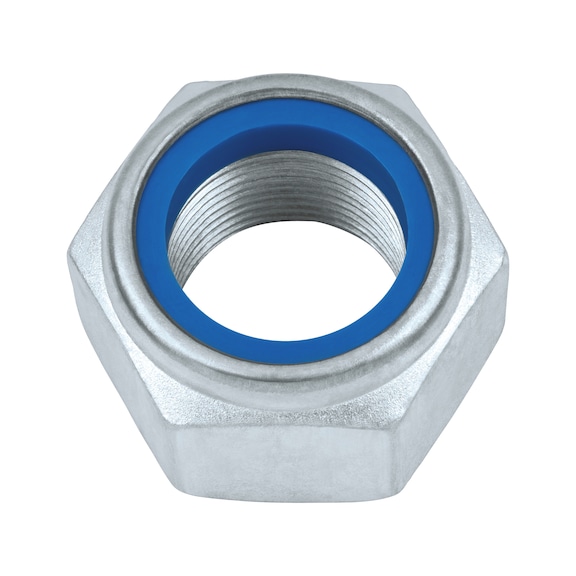

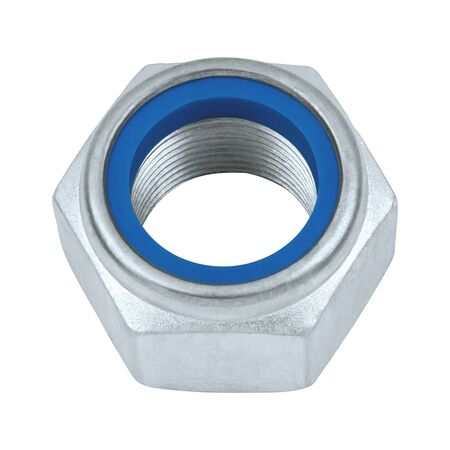

Hexagon Nut Low Profile DIN 985 | M20 | Zinc Plated Blue | Clamping Piece | @Pack of 10 | by Wurth
Hexagon Nut Low Profile DIN 985 M20 is designed for reliable mechanical fastening in machinery and automotive applications. With a zinc-plated blue finish and a clamping piece for enhanced locking, it ensures secure connections even under vibration. Ideal for industrial and construction use, this nut complies with RoHS standards, making it a durable and environmentally friendly choice.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | M20 | Zinc Plated Blue | Clamping Piece | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 370020
Alternatively Known As: Low Profile Hex Nut, Locking Hex Nut, DIN 985 Nut, Clamping Nut M20

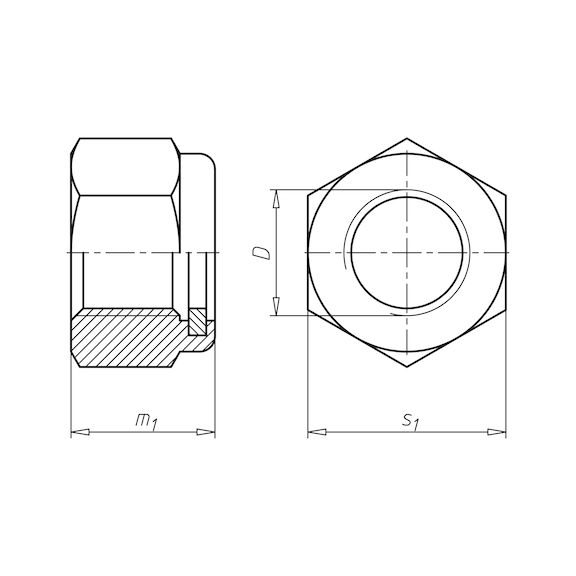

Technical Specifications
- Thread type x nominal diameter (D): M20
- Height (m1): 20 mm
- External drive (s1): WS30
- Standards: DIN 985
- Material: Steel
- Property class: I10I
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: Low
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 20mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard replaced by 10511, 10512, and 7040
- Plastic ring secures screw thread providing locking torque to maintain preload
- No damage to thread surfaces during locking
- Operating temperature range from -70°C to +120°C
- Strength class I10I offers approximately 40% greater load capacity compared to I8I
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly requiring vibration resistance
- Industrial and construction bolted connections
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners (equivalent to DIN standards)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
