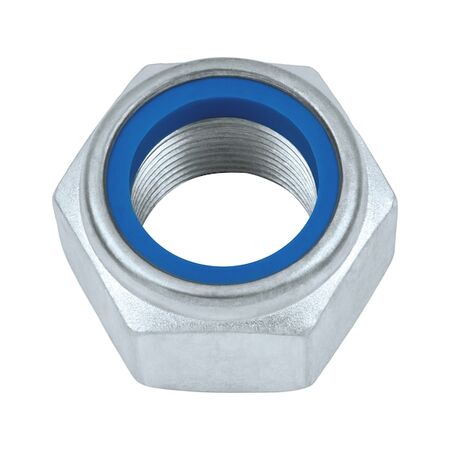

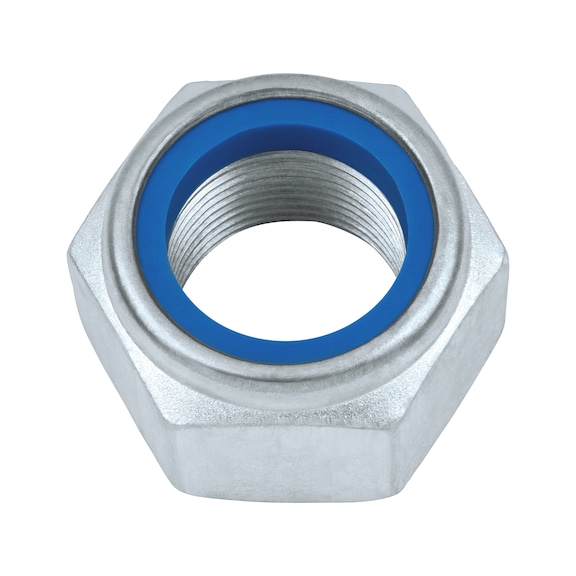

Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Function | M10 | @Pack of 25 | by Wurth
Hexagon Nut Low Profile DIN 985 is designed for secure fastening with a clamping function, ideal for mechanical assemblies and automotive applications. With a zinc plated blue passivation for corrosion resistance and a locking device that prevents loosening, this nut is perfect for industrial use where reliability is crucial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Function | M10 | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 3700101
Alternatively Known As: Low Profile Hex Nut, Locking Hex Nut, DIN 985 Nut, Nylon Insert Nut, Clamping Nut M10
Technical Specifications
- Thread type x nominal diameter (D): M10
- Height (m1): 10 mm
- External drive (s1): WS17
- Standards: ISO 10511, DIN 985
- Material: Steel
- Property class: I10I
- Surface: Zinc plated with blue passivation
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- RoHS-compliant: Yes
- Form: Low profile
- Dimensions (H x L x W): 10mm x 10mm x 17mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by ISO 10511, 10512, and 7040
- Locking function achieved by clamping part polyamide ring preventing loosening
- Strength class I10I with two vertical bars before and after the strength code
- Operating temperature range from -70°C to +120°C
- Zinc plated with blue passivation for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery applications needing locking nuts
- General industrial fastening where reduced load capacity nuts are suitable
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners (referencing ISO 10511 and DIN 985 equivalents)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Wurth warranty policy.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications requiring secure locking nuts.
