Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Piece | M12 | @Pack of 25 | by Wurth
Hexagon Nut Low Profile DIN 985 is designed for secure mechanical fastening with a clamping piece that prevents loosening. Ideal for automotive and industrial applications, this nut features a zinc plated blue passivated surface for enhanced corrosion resistance and complies with RoHS standards. With a reduced height and locking function, it’s perfect for vibration-resistant needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Piece | M12 | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 370012
Alternatively Known As: Low Profile Hex Nut, Locking Hex Nut, DIN 985 Nut, Polyamide Insert Nut, Vibration Resistant Nut

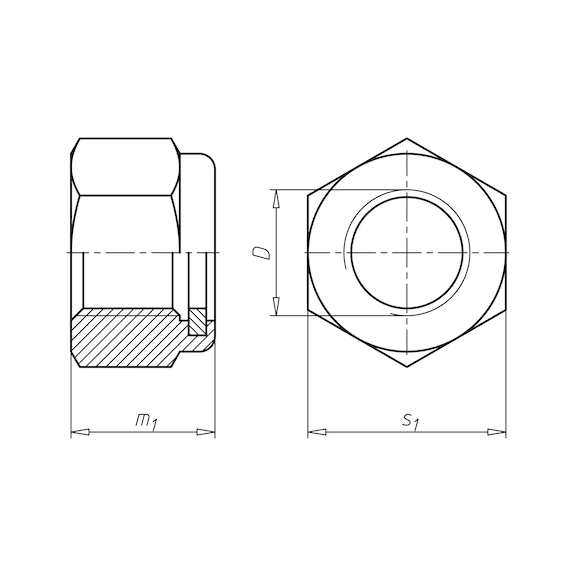

Technical Specifications
- Thread type x nominal diameter (D): M12
- Height (m1): 12 mm
- External drive (s1): WS19
- Standards: DIN 985 (withdrawn, replaced by DIN 10511, 10512, 7040)
- Material: Steel
- Property class: I10I
- Surface: Zinc plated, blue passivated
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- RoHS-compliant: Yes
- Form: Low profile
- Dimensions (H x L x W): 12mm x 19mm x 19mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by DIN 10511, 10512, and 7040
- Locking function achieved by clamping part polyamide ring preventing loosening
- Strength class I10I with two vertical bars before and after the strength code
- Operating temperature range from -70°C to +120°C
- Zinc plated blue passivated surface for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and locking function.
Applications
- Mechanical fastening in machinery and automotive assemblies
- Use in applications requiring vibration resistance and secure locking
- Suitable for industrial and construction fastening needs
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners and related standards
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
