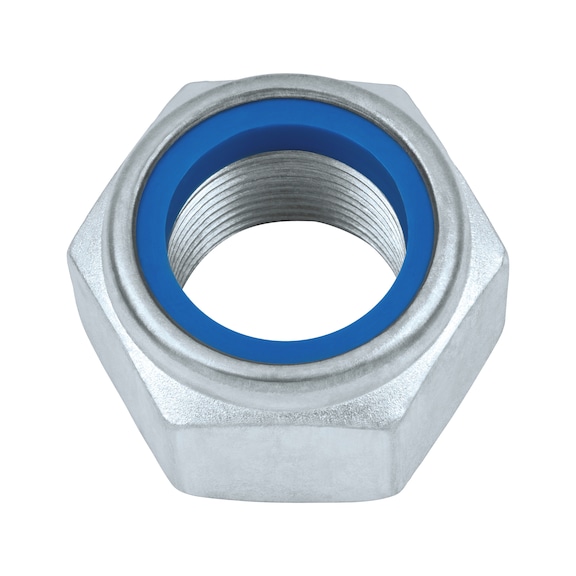

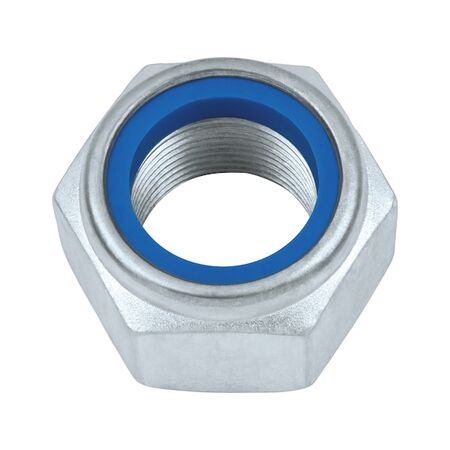

Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Piece | M14 | @Pack of 25 | by Wurth
Hexagon Nut Low Profile DIN 985 is designed for secure fastening in various applications, featuring a zinc plated blue passivated surface for enhanced corrosion resistance. Ideal for automotive assembly, construction, and machinery, this nut utilizes a polyamide clamping ring to prevent loosening, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Piece | M14 | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 370014
Alternatively Known As: Lock Nut, Nylon Insert Nut, Self-locking Hex Nut, DIN 985 Nut, Low Profile Hex Nut
Technical Specifications

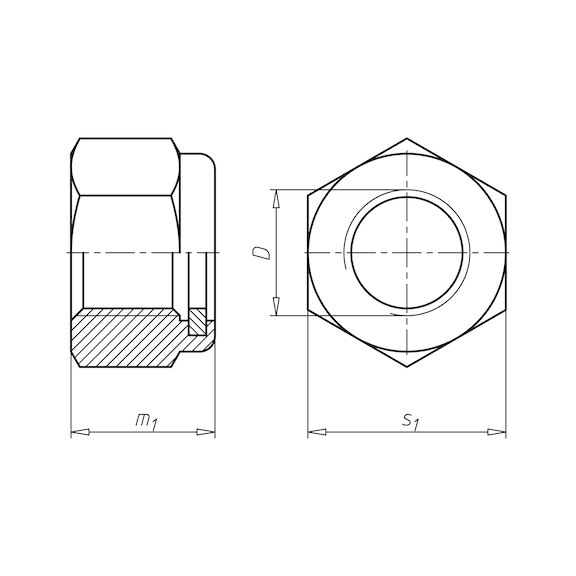

- Thread type x nominal diameter (D): M14
- Height (m1): 14 mm
- External drive (s1): WS22
- Standards: DIN 985 (withdrawn, replaced by DIN 10511, 10512, 7040)
- Material: Steel
- Property class: I10I
- Surface: Zinc plated blue passivated
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- RoHS-compliant: Yes
- Form: Low profile
- Dimensions (H x L x W): 14mm x 22mm x 22mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by DIN 10511, 10512, and 7040
- Locking function achieved by a polyamide clamping ring securing the screw thread
- Prevents loosening by generating locking torque through friction between thread profiles
- No damage to thread surfaces during locking
- Operating temperature range from -70°C to +120°C
- Strength class I10I with higher load capacity (~40% more) compared to I8I
- Zinc plated blue passivated surface for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure locking function.
Applications
- Mechanical fastening in machinery and equipment
- Automotive assembly and repair
- Construction and structural applications requiring vibration resistance
- General industrial use where secure locking nuts are needed
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
