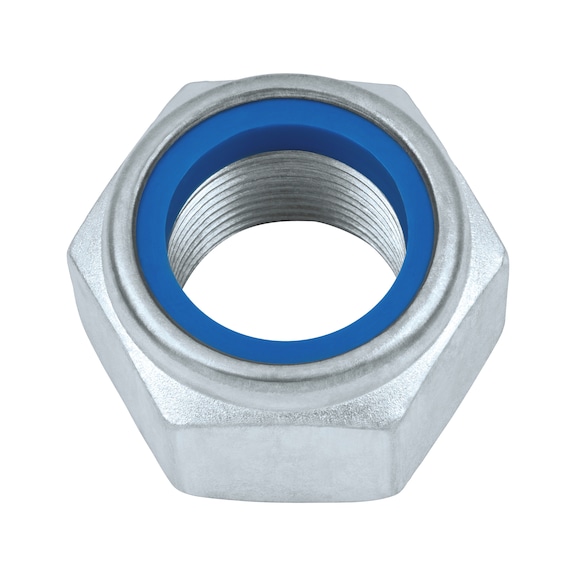

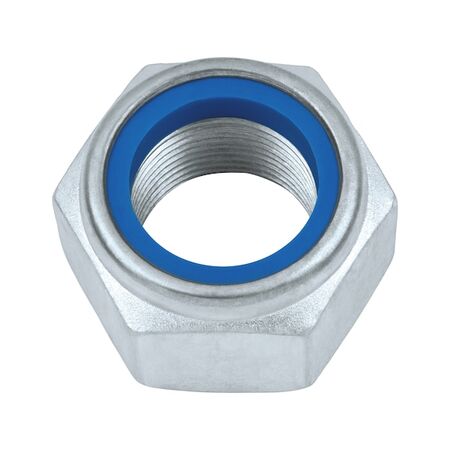

Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Piece with Non-Metal Insert | @Pack of 25 | by Wurth
Hexagon Nut Low Profile DIN 985 is designed for secure fastening in mechanical assemblies, featuring a zinc plated blue passivated surface for corrosion resistance and a clamping piece with a non-metal insert for enhanced locking. Ideal for automotive and machinery applications, this nut ensures vibration resistance and maintains preload without damaging thread surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | Zinc Plated Blue Passivated | Clamping Piece with Non-Metal Insert | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 370010125
Alternatively Known As: Low Profile Lock Nut, DIN 985 Lock Nut, Hex Lock Nut with Polyamide Insert, Zinc Plated Hex Nut
Technical Specifications

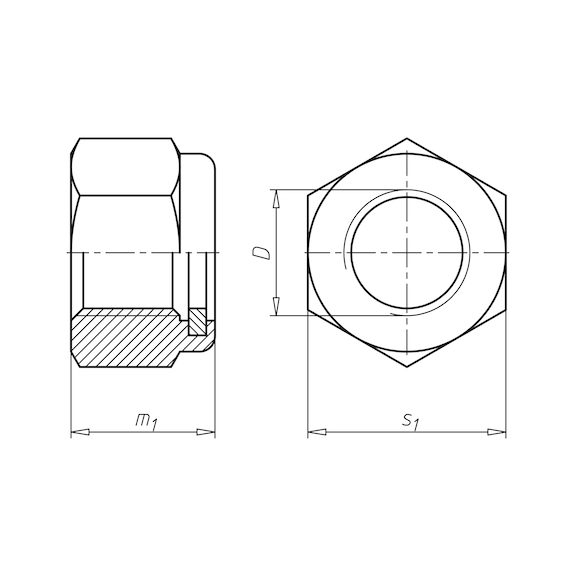

- Thread type x nominal diameter (D): M10
- Height (m1): 10 mm
- External drive (s1): WS17
- Standards: ISO 10511, DIN 985
- Material: Steel
- Property class: I10I
- Surface: Zinc plated
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 10mm x 10mm x 17mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with lower nominal height complying with withdrawn DIN 985 standard
- Strength class I10I with two vertical bars before and after the strength code
- Plastic ring secures screw thread providing locking torque to maintain preload
- No damage to thread surfaces during locking
- Operating temperature range from -70°C to +120°C
- Zinc plated blue passivated surface for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery applications needing locking nuts
- General industrial fastening where reduced load capacity nuts are suitable
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Nut Low Profile with Clamping Piece is available for immediate purchase, ideal for industrial and mechanical fastening applications requiring secure locking nuts.
