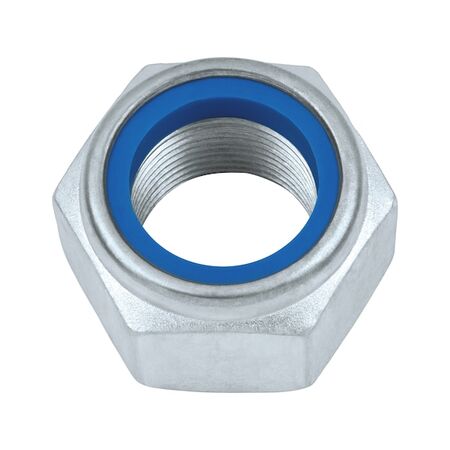

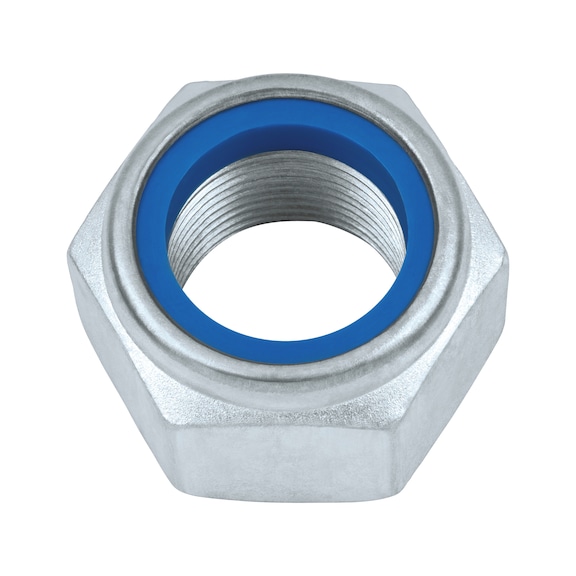

Hexagon Nut Low Profile DIN 985 | Zinc-Plated Steel | Fine Thread & Clamping Piece | @Pack of 25 | by Wurth
Hexagon Nut Low Profile DIN 985 is designed for secure fastening in mechanical assemblies, featuring a fine thread and a clamping piece for enhanced vibration resistance. Made from zinc-plated steel, it ensures durability and corrosion resistance, making it ideal for automotive and industrial applications where reliable locking is essential.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut Low Profile DIN 985 | Zinc-Plated Steel | Fine Thread & Clamping Piece | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 370012125
Alternatively Known As: Locking Hex Nut, Fine Thread Hex Nut, Low Profile Hex Nut, DIN 985 Nut, Clamping Nut
Technical Specifications
- Thread type x nominal diameter x pitch: M12 x 1.25
- Height: 12 mm
- External drive size: WS19
- Material: Steel
- Property class: I10I
- Surface finish: Zinc plated with blue passivation (A2K)
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Operating temperature range: -70°C to +120°C
- RoHS-compliant: Yes
- Dimensions (H x L x W): 12mm x 19mm x 19mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by ISO 10511, 10512, and 7040
- Locking function via clamping polyamide ring preventing loosening
- Steel material with zinc plating and blue passivation (A2K) for corrosion resistance
- Strength class I10I with enhanced load capacity approximately 40% greater than I8I
- Operating temperature range from -70°C to +120°C
- No damage to thread surfaces due to plastic ring locking mechanism
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery applications needing fine thread locking nuts
- General industrial use where reduced load capacity nuts are suitable
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating and passivation extend product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
