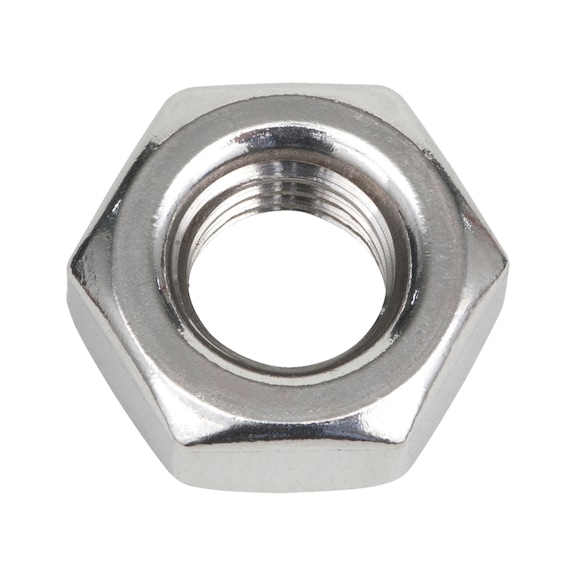

Hexagon Nut UNC 18-8 Stainless Steel | Corrosion Resistant | ASME B18.2.2 Compliant | @Pack of 100 | by Wurth
Hexagon Nut UNC 18-8 Stainless Steel is designed for reliable mechanical fastening in various applications. Made from corrosion-resistant AISI 304 stainless steel, it complies with ASME B18.2.2 standards, ensuring durability and performance. Ideal for industrial assembly and general-purpose fastening in automotive and construction, this nut features a UNC thread type with 24 threads per inch, making it a versatile choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut UNC 18-8 Stainless Steel | Corrosion Resistant | ASME B18.2.2 Compliant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 7740310
Alternatively Known As: Hex Nut UNC Stainless Steel, Inch Hex Nut, Stainless Steel Hexagon Nut, ASME B18.2.2 Nut

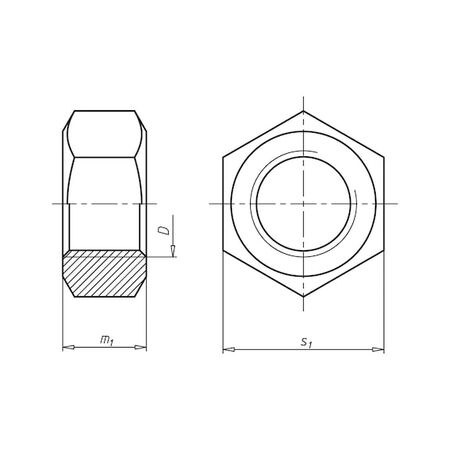

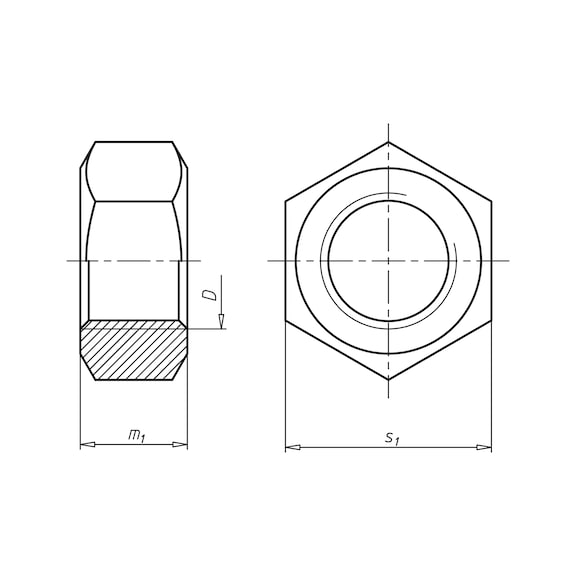

Technical Specifications
- Nominal diameter: 3/16 inch (4.76 mm)
- Height: 0.130 inch (3.3 mm)
- Width across flats: 5/16 inch (7.94 mm)
- Material: Stainless steel AISI 304 (18-8)
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 24
- Dimensions (H x L x W): 3.3mm x 7.94mm x 7.94mm
- Weight: 0.01 kg
Key Features
- Made from 18-8 stainless steel (AISI 304) providing corrosion resistance
- Complies with ASME B18.2.2 hexagon nut standards
- UNC thread type with 24 threads per inch
- Thread tolerance according to ASME B1.1 = 2B for internal thread
- Mechanical properties regulated by ASTM F594 standard
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring corrosion-resistant nuts
- General purpose fastening in automotive and construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Stainless steel material is recyclable
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Nut UNC 18-8 Stainless Steel 100 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
