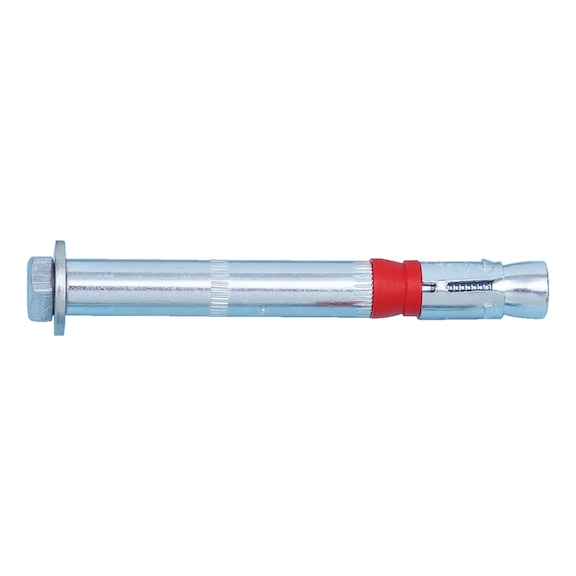

High Performance Hexagon Screw Anchor M10 | Zinc-Plated Steel | Heavy-Duty Load Capacity | @Pack of 25 | by Wurth
The High Performance Hexagon Screw Anchor M10 is designed for heavy-duty anchoring in both cracked and non-cracked concrete. Made from zinc-plated steel, it offers exceptional corrosion resistance and high load-bearing capacities. Ideal for industrial and commercial applications, this anchor ensures immediate load-bearing capacity with a time-saving push-through installation, making it perfect for seismic performance requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M10
- Anchor length: 108 mm
- Max. attachment height: 15 mm
- Width across flats: 17 mm
- Nominal drill-bit diameter: 15 mm
- Drill hole depth: 95 mm
- Effective anchoring depth: 71 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring: 50 Nm
- Through-hole in the component to be connected: 17 mm
- Dimensions (H x L x W): 106mm x 106mm x 17mm
- Weight: 0.3 kg
Key Features
- Heavy-duty anchor for high loads in cracked and non-cracked concrete
- Zinc-plated steel for corrosion resistance
- High load-bearing capacities
- Time-saving push-through installation
- Immediate load-bearing capacity with no waiting
- Torque-controlled expanding galvanized steel anchor
- Proof of Performance ETA-02/0031 certified
- Fire resistance ratings F30, F60, F90, F120 according to DIN 1363-1:1999-10
- Seismic performance category C1 and C2 compliant
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer guidelines to ensure proper torque and anchoring depth for safety and performance.
Applications
- Heavy-duty anchoring in cracked and non-cracked concrete
- Suitable for seismic performance category C1 and C2
- Fire-resistant installations requiring F30 to F120 ratings
- Industrial, commercial, and construction fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel construction extends product life and reduces replacement frequency
- Certified performance reduces risk of structural failure, promoting safety and sustainability
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth High Performance Hexagon Screw Anchor M10x106 is available for immediate purchase, ideal for heavy-duty concrete anchoring in construction and industrial applications.
