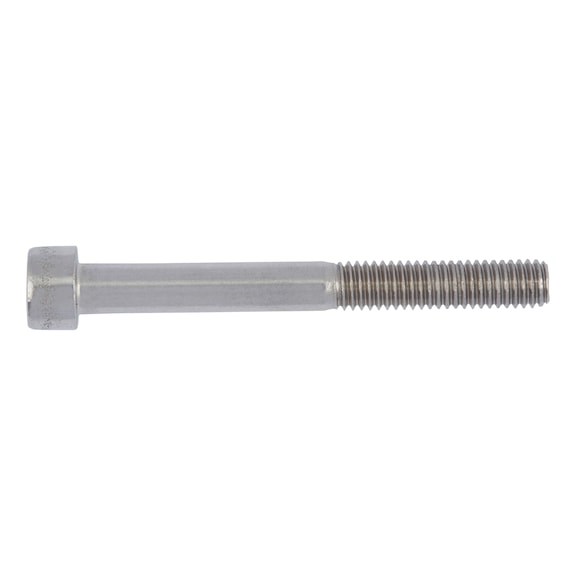

Hexagon Socket Head Cap Screw | 316 Stainless Steel | Corrosion Resistant | UNC Thread | @Pack of 10 | by Wurth
Hexagon Socket Head Cap Screw made from 316 stainless steel offers exceptional corrosion resistance, making it ideal for industrial, marine, and chemical processing applications. With a UNC thread and hexagon socket head for secure tightening, this screw ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Socket Head Cap Screw | 316 Stainless Steel | Corrosion Resistant | UNC Thread | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7064314150
Alternatively Known As: Hex Socket Cap Screw, Hexagon Head Bolt, Stainless Steel Socket Screw, UNC Thread Screw
Technical Specifications
- Nominal diameter: 1/4 inch (6.35 mm)
- Length: 1-1/2 inch (38.1 mm)
- Head diameter: 0.375 inch (9.53 mm)
- Head height: 0.250 inch (6.35 mm)
- Internal drive: HS3/16 inch hex socket
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Thread starts per inch: 20
- Thread tolerance: ASME B1.1 3A external thread
- Dimensions (H x L x W): 6.35mm x 38.1mm x 6.35mm
- Weight: 0.05 kg
Key Features
- Made from stainless steel AISI 316, comparable with A4 stainless steel for excellent corrosion resistance.
- Mechanical properties based on ASTM F837 standard.
- Thread tolerance according to ASME B1.1 = 3A for external thread.
- UNC thread with 20 threads per inch.
- Hexagon socket head for secure tightening.
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and thread engagement.
Applications
- Industrial machinery assembly
- Marine and chemical processing equipment
- Corrosion-resistant fastening applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical fastening applications
- Complies with AS/NZS 1170 – Structural Design Actions for mechanical fastening reliability
Environmental Benefits
- Corrosion resistance extends product life, reducing replacement frequency and waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, marine, and chemical processing fastening applications.
